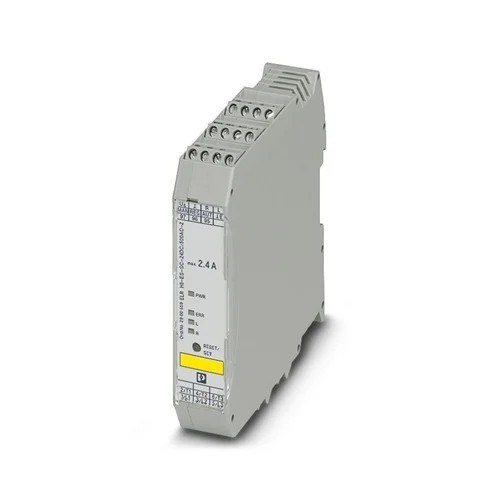

Phoenix Contact ELR H5-ES-SC 24DC/500AC-2 hybrid motor starter with compact design, safety stop, and durable protection for three-phase motors.
The Phoenix Contact ELR H5-ES-SC 24DC/500AC-2 hybrid motor starter provides a reliable and space-efficient way to start and protect three-phase motors up to 550 V AC. Designed in a slim 22.5 mm housing, it integrates motor reversing, protection, and safe shutdown in one device. With its high safety ratings (SIL 3 and PL e), the unit is built for demanding industrial automation environments. Its hybrid switching method helps minimize mechanical wear, extending equipment life and ensuring consistent performance where safety, compactness, and reliability are critical.
The ELR H5-ES-SC 24DC/500AC-2 is engineered to streamline installation while providing advanced protection features. Its hybrid switching technology reduces stress on components, lowering maintenance costs and preventing unnecessary downtime. Emergency stop functionality is directly integrated, enhancing operator and machine safety without additional hardware. The compact DIN rail design saves valuable panel space, while protective features like surge resistance and polarity safeguards ensure long-term stability. By combining safety compliance, reduced wiring, and extended service life, this motor starter delivers a practical, future-ready solution for machine builders, system integrators, and operators seeking dependable motor control in critical applications.
The Phoenix Contact ELR H5-ES-SC 24DC/500AC-2 hybrid motor starter is the ideal choice when you need maximum reliability in a minimal footprint. It combines motor reversing, protection, and emergency stop into one compact device. With advanced hybrid switching, it delivers smoother operation, longer equipment life, and industry-leading safety ratings, making it perfect for modern, space-conscious control panels.
This motor starter solves the challenge of balancing safety, durability, and space efficiency in industrial motor control. Instead of using multiple devices, it unifies protection, switching, and emergency stop functions. By reducing wiring, lowering maintenance needs, and extending service life, it tackles downtime and complexity—ensuring safe, efficient, and future-proof motor operation in demanding environments.
| Feature | Details | Benefit |
|---|---|---|
| Rated Control Voltage | 24 V DC (19.2–30 V range) | Reliable performance in automation systems |
| Rated Operating Voltage | Up to 500 V AC (3-phase) | Handles demanding motor applications |
| Rated Operating Current | 2.4 A | Supports a wide range of motor loads |
| Safety Certification | SIL 3 (IEC 61508), PL e (ISO 13849) | Maximum operator and system safety |
| Emergency Stop Function | Integrated | Enhances machine and operator protection |
| Hybrid Switching Technology | Low-wear design | Longer service life, less downtime |
| Housing Width | 22.5 mm | Saves panel space, ideal for compact designs |
| Mounting | DIN rail, vertical | Fast installation and easy integration |
| Operating Temperature | -25 °C to +70 °C | Reliable even in harsh environments |
| Protection Class | IP20 | Safe use in control cabinets |
| Status Indication | LED (green, yellow, red) | Clear visibility of operating and error states |
| Certifications | UL, EAC, ATEX, CCC | Meets international standards for global use |
Download Phoenix Contact ELR H5-ES-SC 24DC/500AC-2 (2900559) Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4046356527828 |
| Tariff Number | 85371098 |
| Weight | 287.79 g (net) / 311 g (gross) |
| Country of Origin | Germany |
Modern packaging plants need conveyor belts that frequently switch direction when products are rerouted or sorted. The ELR H5-ES-SC 24DC/500AC-2 hybrid motor starter makes this possible with its integrated reversing function. Operators gain a safer process through the emergency stop feature, while hybrid switching reduces wear on the motor during constant direction changes. Its compact size means control cabinets stay uncluttered even when multiple conveyors are running side by side.
In industrial buildings, fans and exhaust systems must operate reliably for both air circulation and emergency smoke extraction. By using the ELR H5-ES-SC 24DC/500AC-2, engineers ensure stable fan startup and protection against overloads without bulky external devices. The integrated safety stop gives maintenance teams confidence when working in sensitive areas. Its ability to tolerate wide temperature ranges makes it ideal for HVAC rooms where conditions are less controlled.
Pumps used in treatment plants or chemical processes often need reversing cycles for cleaning or back-flushing tasks. The ELR H5-ES-SC 24DC/500AC-2 simplifies this by combining motor protection, reversing, and safe shutdown in one slim module. This reduces wiring time and eliminates the need for multiple separate devices. With hybrid switching, pumps operate smoothly and with less downtime. The integrated safety levels also prevent damage when motors face unexpected blockages or dry-run conditions.
Cranes and hoists operate under tough conditions and require dependable reversing control to handle lifting and lowering loads. The ELR H5-ES-SC 24DC/500AC-2 provides fast direction switching, built-in overload protection, and emergency stop functionality to keep operations safe. Its compact width fits easily into crane-mounted cabinets, where space and weight are critical. With low-wear switching, the device ensures longer service intervals, making it especially valuable in applications with frequent start-stop cycles.
| Category | Model / Part Name | Part Number | Benefit |
|---|---|---|---|
| 3-Phase Loop Bridge (0.3 m) | BRIDGE-2 | 2900746 | Connects 2 CONTACTRON modules with secure screw terminals |
| BRIDGE-3 | 2900747 | Connects 3 modules, ensuring reliable power distribution | |
| BRIDGE-4 | 2900748 | For 4 modules, supports compact system expansion | |
| BRIDGE-5 | 2900749 | For 5 modules, simplifies wiring and reduces installation time | |
| BRIDGE-6 | 2900750 | For 6 modules, consistent with CONTACTRON housing width | |
| BRIDGE-7 | 2900751 | For 7 modules, improves multi-unit system connectivity | |
| BRIDGE-8 | 2900752 | For 8 modules, neat cabling in larger setups | |
| BRIDGE-9 | 2900753 | For 9 modules, quick loop bridging with ferrules | |
| BRIDGE-10 | 2900754 | For 10 modules, ensures scalable distribution | |
| Extended Cable Loop Bridge (1 m) | BRIDGE-2-1M | 2901542 | For 2 modules with longer cable distance |
| BRIDGE-3-1M | 2901655 | For 3 modules, provides layout flexibility | |
| BRIDGE-4-1M | 2901658 | For 4 modules, supports extended spacing | |
| BRIDGE-5-1M | 2901544 | For 5 modules, longer reach for wider panels | |
| BRIDGE-6-1M | 2901649 | For 6 modules, extended cabinet integration | |
| Extended Cable Loop Bridge (3 m) | BRIDGE-2-3M | 2901543 | For 2 modules, supports long distance wiring |
| BRIDGE-3-3M | 2901656 | For 3 modules, large panel installation | |
| BRIDGE-4-3M | 2901659 | For 4 modules, easy cabinet organization | |
| BRIDGE-5-3M | 2901545 | For 5 modules, improves system wiring efficiency | |
| BRIDGE-6-3M | 2901697 | For 6 modules, suitable for large enclosures | |
| BRIDGE-7-3M | 2901698 | For 7 modules, flexible connection for expansion | |
| BRIDGE-8-3M | 2901700 | For 8 modules, optimal in extended layouts | |
| BRIDGE-9-3M | 2901701 | For 9 modules, long-distance bridging | |
| BRIDGE-10-3M | 2901702 | For 10 modules, reliable connections across panels | |
| Special Cable Bridge | BRIDGE-2-2M/0.3M | 2909897 | For 2 modules with offset spacing |
| BRIDGE-3-2M/0.3M | 2909898 | For 3 modules, cable offset design | |
| BRIDGE-4-2M/0.3M | 2909899 | For 4 modules, unique installation flexibility | |
| Label Accessories | US-EMLP (15×5) Plastic Label | 0828790 | Adhesive card labels, compatible with BLUEMARK and THERMOMARK printers |
| UC-EMLP (15×5) Plastic Label | 0819301 | Sheet labels, easy identification of modules |
