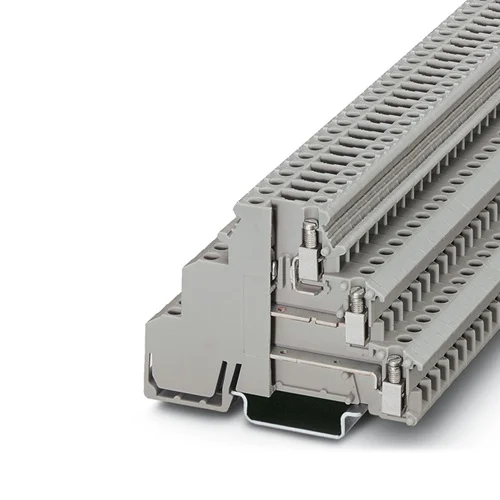

Name: Phoenix Contact DIKD 1,5-TG Actuator Terminal Block - INOSAKI
SKU: Phoenix-2774237
Price: 7.96 USD
Availability: InStock

Technical Overview

3-level screw connection terminal for 0.2-4mm² wire, 250V/15A, -60 to 110°C, 4kV surge, DIN rail mount, with disconnect.

Key Features

3-level design with 6 connections for compact wiring.
Screw connection method ensures reliable and secure wiring.
Supports rigid conductors from 0.2 mm² to 4 mm² and flexible conductors from 0.2 mm² to 2.5 mm².
Designed for DIN rail mounting (NS 35/7,5 and NS 35/15).
Nominal voltage of 250 V and nominal current of 15 A.
Wide operating temperature range of -60 °C to 110 °C.
Rated surge voltage of 4 kV provides enhanced electrical protection.
Gray color (RAL 7042) for standard industrial identification.
Stripping length of 8 mm for easy wire preparation.

Technical Specification Matrix

Parameter	Value
Nominal Voltage	250 V
Nominal Current	15 A
Rated Surge Voltage	4 kV
Operating Temperature Range	-60 °C to 110 °C
Conductor Cross Section (rigid)	0.2 mm² - 4 mm²
Conductor Cross Section (flexible)	0.2 mm² - 2.5 mm²
AWG Wire Gauge Range	24 - 12 AWG
Connection Method	Screw connection
Number of Levels	3
Number of Connections	6
Mounting Type	DIN rail (NS 35/7,5, NS 35/15)
Color	Gray (RAL 7042)
Stripping Length	8 mm
Screw Thread	M3
Tightening Torque	0.5 - 0.6 Nm
Physical Weight (kg)	0.02
Dimensions L x W x H (cm)	7.25 x 0.62 x 6.2

Industrial Applications

1. Industrial Sensor/Actuator Wiring in Harsh Environments

This terminal block is ideal for connecting sensors and actuators in challenging industrial environments, such as those with significant temperature fluctuations. Its -60°C to 110°C operating temperature range ensures reliable performance, while the 3-level design enables organized and compact wiring of multiple signals (e.g., power, signal, ground) to control systems.

Problem Solved

Provides reliable and temperature-resilient connections for sensor/actuator signals in environments with extreme temperatures, ensuring operational continuity and signal integrity.

Wide Operating TemperatureSensor IntegrationActuator ControlHarsh EnvironmentsMulti-Level Wiring

2. Compact Control Panel Integration

With a narrow width of 6.2 mm and DIN rail mounting capability, this terminal block enables high-density wiring within space-constrained control cabinets. The 250V nominal voltage and 15A nominal current are suitable for typical industrial control circuits, and the screw connection method provides robust and secure terminations, crucial for tight spaces.

Problem Solved

Optimizes space utilization in crowded control panels while providing secure and robust electrical connections for control signals and low-power circuits.

Space OptimizationDIN Rail MountingControl Cabinet WiringHigh-Density WiringCompact Design

3. Process Automation Systems with Electrical Noise Immunity

The 4 kV rated surge voltage of this terminal block makes it highly suitable for process automation applications where equipment is frequently exposed to electrical noise from motors, solenoids, or switching operations. This surge protection helps maintain signal integrity and prevents damage to sensitive control components, ensuring stable and reliable process control.

Problem Solved

Protects sensitive process automation equipment from electrical transients and noise, ensuring reliable signal transmission and preventing system disruptions.

Surge ProtectionElectrical Noise ImmunityProcess ControlSignal IntegrityAutomation Reliability
