Compact Phoenix Contact DIKD 1,5-TG terminal block with 3-level screw connection, 15 A current, 250 V voltage, and robust DIN rail mounting.

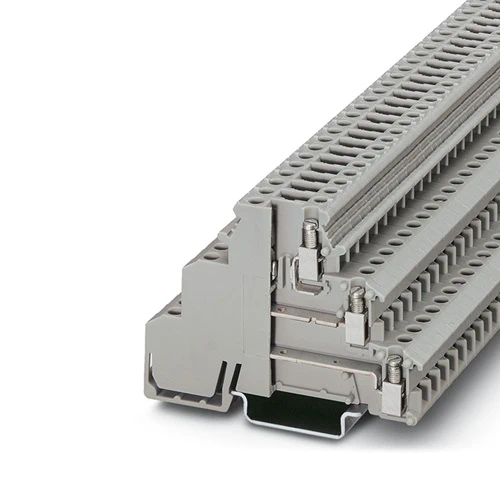

The Phoenix Contact DIKD 1,5-TG sensor/actuator terminal block (Article No. 2774237) delivers a compact and durable wiring solution for automation and control systems. Using a secure screw connection method, it supports conductor sizes from 0.2 mm² up to 4 mm², ensuring reliable current distribution. With a nominal current capacity of 15 A and up to 250 V operating voltage, it is engineered for safe and efficient signal handling. Its slim design is compatible with standard DIN rail mounting, making it an excellent choice for modern control cabinets that demand space-saving, reliability, and compliance with international wiring standards.
The Phoenix Contact DIKD 1,5-TG terminal block is built with a three-level layout and multiple connection points, helping integrators reduce panel space while maintaining high connectivity. Its tough insulating housing ensures resilience under extreme conditions, operating effectively between -60 °C and +110 °C. This terminal block enhances wiring flexibility, withstands vibrations, and integrates seamlessly with accessories such as bridges, isolating plugs, and fuse modules. In practice, it boosts system uptime in demanding environments like factory lines, process plants, and machinery panels, where dependable electrical connections are essential for maintaining continuous and safe operation.
The Phoenix Contact DIKD 1,5-TG is more than just a terminal block – it’s a compact wiring hub designed for efficiency, safety, and space optimization. Its three-level structure allows multiple connections in minimal space, making it ideal for modern control panels where every millimeter matters. Built to handle 15 A current and 250 V voltage, it ensures reliable distribution even in demanding automation setups. With robust insulation, vibration resistance, and compatibility with DIN rail systems, it gives engineers the confidence to design smarter, more resilient electrical networks that reduce downtime and streamline installations.
In industrial automation, cramped panels, complex wiring, and unreliable connections can create maintenance headaches and costly downtime. The DIKD 1,5-TG solves these issues by offering a space-saving terminal block that supports multiple conductor types while guaranteeing secure screw connections. Its rugged build withstands extreme temperatures and mechanical stress, reducing risks of loose wiring or signal loss. By enabling faster installation and long-term reliability, it minimizes troubleshooting and ensures consistent system performance. In essence, it eliminates wiring bottlenecks and provides a dependable foundation for safe and efficient signal transmission in control cabinets.
| Feature | Details | Benefit |
|---|---|---|
| Nominal Voltage | 250 V | Safe for control and automation circuits |
| Nominal Current | 15 A | Handles strong current loads reliably |
| Connection Method | Screw connection, M3 thread | Provides secure and stable wiring |
| Levels / Connections | 3 levels, 6 connections | Space-saving, high-density wiring |
| Conductor Range | 0.2 – 4 mm² rigid / 0.2 – 2.5 mm² flexible | Versatile for different conductor types |
| DIN Rail Mounting | NS 35/7.5, NS 35/15 | Universal fit for standard control panels |
| Material | Polyamide (PA), UL 94 V2 flame rating | Durable housing with fire resistance |
| Operating Temperature | -60 °C … +110 °C | Performs reliably in extreme conditions |
| Surge Voltage Rating | 4 kV | Ensures protection against transient voltages |
| Certifications | CSA, cULus, EAC | Meets international safety and quality standards |
| Optional Accessories | Insertion bridges, isolating plugs, fuse plugs, partition plates | Expands functionality and customization |
Download Phoenix Contact DIKD 1,5-TG 2774237 Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4017918126773 |
| Customs Tariff Number | 85369010 |
| Weight per Piece | 20.153 g |
| Country of Origin | Poland (PL) |
1. Compact Machine Control Panel in Automotive Assembly
Automotive assembly lines require dense wiring for sensors, actuators, and safety switches, all inside limited cabinet space. The DIKD 1,5-TG makes this easier by offering three connection levels in one terminal block, letting engineers route power, signal, and return lines in a single unit. Its secure screw fastening withstands vibration from robotic tools and moving conveyors, preventing downtime caused by loose contacts. By minimizing the number of terminal blocks required, the panel footprint is reduced, creating a leaner and more reliable control cabinet layout.
2. Process Control in Chemical Plants
Chemical processing facilities rely on continuous monitoring from field instruments such as flow meters and temperature probes. These installations often face electrical surges, high ambient heat, and occasional exposure to corrosive conditions. The DIKD 1,5-TG solves these issues with a 4 kV surge voltage rating, durable insulation, and wide operating temperature capability. Its three-level arrangement helps technicians separate critical control lines, simplifying troubleshooting and reducing the chance of cross-interference. This ensures process stability and safer operation in demanding plant environments.
3. Conveyor Systems in Food & Beverage Facilities
Food production lines depend on reliable conveyors that must meet hygiene standards while operating continuously. Frequent cleaning cycles and temperature variations put strain on electrical connections. The DIKD 1,5-TG provides a resilient solution with strong screw clamping and polyamide housing that resists stress and wear. Its compact multi-wire capacity helps reduce cabling clutter, making enclosures easier to maintain and less prone to contamination. By saving space and ensuring consistent connections, it supports uninterrupted production and helps facilities meet strict safety requirements.
4. Test and Measurement Racks for Automation OEMs
Industrial OEMs designing test benches or automation prototypes often need flexible wiring that can be reconfigured quickly. The DIKD 1,5-TG supports this need with six connection points, allowing simultaneous handling of both sensor signals and actuator power leads. Its compatibility with bridging and isolating accessories makes it easy to rearrange circuits without major rewiring. The broad conductor range ensures that both fine gauge test wires and larger load connections can be secured in the same system. This flexibility accelerates project development while maintaining reliability across repeated testing cycles.
| Category | Model / Part Number | Description | Benefit |
|---|---|---|---|
| Insertion Bridges | EB 80-DIK BU (2715940) | 80-position bridge, blue | Enables parallel connection of terminals with higher current capacity |
| EB 10-DIK RD (2716774) | 10-position bridge, red | Provides easy potential distribution for smaller groups of terminals | |
| EB 10-DIK BU (2716680) | 10-position bridge, blue | Simplifies cross-connection in compact installations | |
| EB 80-DIK RD (2715953) | 80-position bridge, red | Flexible bridging for large-scale wiring systems | |
| Fuse Plugs | ST-SILA250-UK 4 (0921053) | 250 V, 6.3 A fuse plug | Protects circuits against overloads and short circuits |
| ST-SILED 60-UK 4 (0921040) | 60 V, 6.3 A fuse plug | LED indication for circuit status monitoring | |
| ST-SILED 24-UK 4 (0921037) | 24 V, 6.3 A fuse plug | Provides visible fault detection in low-voltage circuits | |
| ST-SILED 12-UK 4 (0921024) | 12 V, 6.3 A fuse plug | Compact fuse option with LED indication | |
| Partition Plates | ATP-DIKD 1,5 (1413285) | Partition plate, gray | Electrical separation and mechanical stability in multi-terminal setups |
| Marker Accessories | SBS 6:UNBEDRUCKT (1007222) | Marker card, white | Custom labeling for clear identification |
| ZB 6:UNBEDRUCKT (1051003) | Zack marker strip, white | Easy labeling for 6.2 mm wide terminal blocks | |
| ZB 6 CUS (0824992) | Customized labeled marker strip | Pre-printed markers for quick wiring identification | |
| Component Connectors | ST-BE (2802316) | 2-position connector | Allows integration of electronic components into terminal block |
| ST-BE-LA230 (2802387) | With 230 V indicator light | Provides visual monitoring of live circuits | |
| ST-BE-LA24 (2802374) | With 24 V DC indicator light | Visualizes low-voltage circuit status | |
| ST-BE-VP (2802332) | 4-position connector | Expands block functionality for multi-pole applications | |
| Isolating Plugs | ST-K 4 (5025462) | Standard isolating plug | Safe circuit disconnection during maintenance |
| ST-K 4 BU (3025516) | Blue isolating plug | Color-coded disconnection for clarity | |
| ST-K 4 ASEA (5031003) | With spacer | Provides additional clearance when isolating | |
| ST-K 4 SN (3048470) | Tin-plated contact isolating plug | Enhanced conductivity and corrosion resistance | |
| DIN Rails & End Brackets | NS 35/7,5 PERF, NS 35/15 PERF, etc. | Standard perforated/unperforated DIN rails | Secure mounting for terminal blocks |
| CLIPFIX 35 (3022218) | Quick mounting end clamp | Locks terminal blocks firmly on DIN rail | |
| E/UK (1201442) | Standard end bracket | Prevents terminal block movement on DIN rail |
