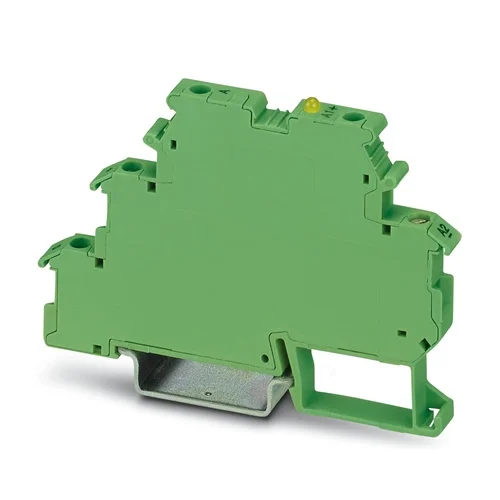

High-speed Phoenix Contact DEK-OE-5DC/24DC/100KHZ-G solid-state relay for precise, noise-free signal switching up to 100kHz in automation systems.
The Phoenix Contact DEK-OE-5DC/24DC/100KHZ-G is a high-speed solid-state relay module engineered for precision automation and control systems. It operates with a 5 V DC input and provides an output range of 14 – 30 V DC, enabling efficient signal transmission up to 100 kHz. Designed with built-in surge and polarity protection, this relay ensures stable operation even in demanding environments. The integrated LED status indicator simplifies maintenance and monitoring. With its DIN rail mount and compact 6.2 mm width, the module fits easily into tight control cabinets while maintaining exceptional signal reliability and electrical isolation.
The DEK-OE-5DC/24DC/100KHZ-G delivers fast, interference-free switching ideal for PLC counter boards, digital input modules, and signal converters. Its push/pull output stage allows accurate data transmission and synchronization across automation networks. An internal capacitor filters unwanted noise, enhancing signal clarity and system stability. With a frequency limit of 100 kHz, it supports rapid response applications such as motor control, pulse counting, and industrial monitoring. The screw connection design ensures secure wiring and long-term durability. Compact, reliable, and maintenance-free, this module offers engineers a modern solution for space-efficient, high-performance control systems.
Why DEK-OE-5DC/24DC/100KHZ-G?
The Phoenix Contact DEK-OE-5DC/24DC/100KHZ-G stands out for its exceptional switching precision and compact design. It enables ultra-fast digital signal conversion up to 100 kHz, ensuring seamless performance in automation systems. With built-in surge protection, polarity safeguards, and LED indication, it offers engineers a long-lasting, low-maintenance solution for high-speed industrial signal processing.
What Problem Does It Solve?
This solid-state relay module eliminates common issues like contact wear, signal distortion, and electrical noise found in traditional electromechanical relays. It provides a silent, vibration-resistant, and interference-free signal transfer, ensuring reliable communication between PLCs and field devices. Ideal for environments where speed, stability, and precision are essential, it ensures continuous operation without downtime or maintenance.
| Feature | Details | Benefit |
|---|---|---|
| Product Type | Solid-State Relay Module | Enables fast, contactless signal switching for industrial automation. |
| Input Voltage | 5 V DC nominal (2.5 – 6 V DC range) | Ensures compatibility with standard PLC output signals. |
| Output Voltage Range | 14 – 30 V DC | Supports wide output tolerance for flexible circuit integration. |
| Transmission Frequency | Up to 100 kHz | Delivers ultra-fast switching performance for high-speed control systems. |
| Output Circuit Type | 3-conductor push/pull (ground-referenced) | Provides stable, symmetrical output signals ideal for digital control. |
| Rated Continuous Current | 50 mA | Suitable for low-power signal control with high reliability. |
| Protective Circuit | Reverse polarity and surge protection | Prevents damage from incorrect wiring and transient voltages. |
| Operating Indicator | Integrated yellow LED | Offers clear visual feedback for operating and status monitoring. |
| Response Time | 1 µs (on), 2 µs (off) | Supports high-speed data transmission and minimal delay in automation cycles. |
| Mounting Type | DIN rail mounting | Allows quick installation and easy system integration. |
| Terminal Connection | Screw connection, M3 thread | Ensures secure and vibration-resistant electrical contact. |
| Housing Width | 6.2 mm | Saves space in control panels and modular system layouts. |
| Operating Temperature | -20 °C to +60 °C | Reliable operation in varied industrial environments. |
| Insulation Voltage | 2.5 kV AC (Input/Output) | Provides safe electrical isolation between control and load circuits. |
| Compliance | IEC 60947-5-1, EU RoHS | Meets global industrial safety and environmental standards. |
Download Phoenix Contact DEK-OE-5DC/24DC/100KHZ-G (2964555) Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4017918130992 |
| Traffic Number (Customs Tariff Code) | 85364190 |
| Weight (Per Piece) | 21.7 g |
| Country of Origin | China |
In high-performance packaging systems, precise item counting and timing control are crucial. The DEK-OE-5DC/24DC/100KHZ-G ensures accurate pulse transmission between sensors and PLC counters, even at high conveyor speeds. Its 100 kHz switching capability allows seamless synchronization of movement and labeling operations. The built-in surge and polarity protection prevents false triggering from electrical noise, while the compact design makes it ideal for dense control cabinets commonly used in modern packaging machines.
Pick-and-place and assembly robots rely on instant response to feedback signals for consistent accuracy. This solid-state relay enables fast, interference-free communication between encoders, sensors, and robot controllers. Its microsecond-level response time minimizes lag, ensuring smooth and repeatable motion sequences. The push/pull output structure helps maintain signal stability even during complex multi-axis movements, supporting higher throughput and reduced maintenance compared to mechanical relays.
Electronic testing systems often require rapid switching between test circuits while maintaining electrical isolation. The DEK-OE-5DC/24DC/100KHZ-G provides clean, distortion-free signal transfer, allowing measurement systems to operate accurately under continuous testing cycles. Its solid-state design removes contact bounce issues found in electromechanical relays, delivering consistent performance over millions of switching operations. This makes it suitable for laboratory and production test setups where reliability and repeatability are vital.
In industrial monitoring setups, sensors generate rapid digital pulses that must reach the controller without interference. This relay module’s 100 kHz transmission speed ensures every pulse is captured and transmitted precisely. The integrated LED indicator assists in visual diagnostics, and the noise-suppressing capacitor ensures stable operation even in environments with electrical interference. This makes it an excellent choice for systems handling laser sensors, proximity switches, or high-frequency motion detectors.
| Accessory Name | Part Number | Description | Purpose / Benefit |
|---|---|---|---|
| EB 2-DIK RD Insertion Bridge | 2716693 | 2-position red insertion bridge, 6.15 mm pitch | Links two DEK terminal blocks for signal or power distribution. |
| EB 3-DIK RD Insertion Bridge | 2716745 | 3-position red insertion bridge, 6.15 mm pitch | Simplifies multi-point connection for grouped signal outputs. |
| EB 4-DIK RD Insertion Bridge | 2716758 | 4-position red insertion bridge, 6.15 mm pitch | Ideal for short-circuit distribution or parallel wiring. |
| EB 5-DIK RD Insertion Bridge | 2716761 | 5-position red insertion bridge, 6.15 mm pitch | Facilitates easy interconnection between multiple relay modules. |
| EB 10-DIK RD Insertion Bridge | 2716774 | 10-position red insertion bridge, 6.15 mm pitch | Supports high-density wiring in compact control cabinets. |
| EB 80-DIK RD Insertion Bridge | 2715953 | 80-position red insertion bridge, 6.2 mm pitch | Designed for mass signal connection in modular installations. |
| EB 5-DIK BU Insertion Bridge | 2716677 | 5-position blue insertion bridge, 6.15 mm pitch | Used for neutral or reference potential distribution. |
| EB 10-DIK BU Insertion Bridge | 2716680 | 10-position blue insertion bridge, 6.15 mm pitch | Provides common ground or control signal reference connections. |
| EB 80-DIK BU Insertion Bridge | 2715940 | 80-position blue insertion bridge, 6.2 mm pitch | Efficient for long terminal rows or shared neutral links. |
| D-DEK 1.5 GN Separating Plate | 2716949 | End cover plate, green | Provides safe insulation between terminal rows. |
| ZB 6:UNBEDRUCKT Marker Strip | 1051003 | White unprinted zack marker strip | Custom labeling for DEK modules using CMS plotter. |
| ZB 6,LGS:FORTL.ZAHLEN Marker Strip | 1051016 | Pre-printed numbered marker strip | Enables easy identification and wiring traceability. |
| ZB 6/WH-100:UNBEDRUCKT Marker Strip | 5060935 | 1000-piece unprinted marker strip | Bulk labeling option for large installations. |
| DIKD 1.5 Terminal Block | 2715979 | Initiator/actuator terminal block, gray | Complements the DEK series for signal input/output management. |
| Model | Product Type | Description / Use Case |
|---|---|---|
| DEK-OE-24DC/24DC/100KHZ-G | Solid-State Relay | Similar module with 24 V DC input for direct PLC compatibility. |
| DEK-OE-5DC/24DC/1KHZ-G | Solid-State Relay | Lower-frequency version for slower control applications. |
| DEK-OE-24DC/24DC/10KHZ-G | Solid-State Relay | Mid-range model offering 10 kHz switching for general automation. |
| PLC-RSC-24DC/21-21AU | Solid-State Relay Module | Plug-in relay system for extended control flexibility. |
| OPT-4HC-24DC/24DC/50KHZ | Optocoupler Relay | Alternative isolation relay for high-speed signal switching. |
