Phoenix Contact DEK-OE-24DC/24DC/100kHz Solid-State Relay

$ 56.35

Phoenix Contact DEK-OE-24DC/24DC/100kHz solid-state relay offers fast 100kHz switching, LED status, surge protection, and compact DIN rail mounting.

Product Description

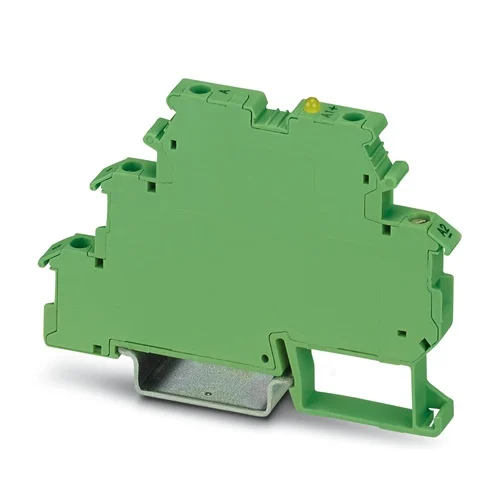

Phoenix Contact DEK-OE-24DC/24DC/100kHz Solid-State Relay Terminal Block

The Phoenix Contact DEK-OE-24DC/24DC/100kHz solid-state relay terminal block is designed to provide rapid and reliable switching for modern automation systems. Supporting transmission frequencies up to 100 kHz, it ensures precise separation of control and load signals for safe and stable operation. With a 24 V DC input and an output range of 4 to 30 V DC at 50 mA, it offers a compact solution that saves valuable panel space. Its integrated LED display and protective features simplify monitoring while improving long-term reliability, making it an excellent choice for control cabinets that demand both speed and safety.

Built for industrial environments, the Phoenix Contact DEK-OE-24DC/24DC/100kHz combines compact design with robust functionality. Noise suppression on the input side keeps signal quality stable even under challenging conditions, while surge and polarity protection extend service life. The extremely fast response time—measured in microseconds—enables accurate processing in applications where timing is critical, such as counting, monitoring, or automated testing. The unit mounts directly on a DIN rail, allowing quick integration into control panels without sacrificing space. By reducing downtime, shielding sensitive equipment, and maintaining signal integrity, it helps engineers achieve higher productivity and dependable performance in demanding industrial processes.

Why Phoenix Contact DEK-OE-24DC/24DC/100kHz?
Because it merges lightning-fast switching with robust protection in a compact design. The Phoenix Contact DEK-OE-24DC/24DC/100kHz ensures precise signal handling at up to 100 kHz while safeguarding sensitive circuits with integrated surge and polarity protection. It’s the smart choice when engineers need a dependable, space-saving relay module that delivers consistent performance in complex automation environments.

What problem does it solve?
It eliminates the challenges of unstable signals, slow switching, and interference in high-speed applications. By providing microsecond-level response times and built-in noise suppression, the Phoenix Contact DEK-OE-24DC/24DC/100kHz keeps industrial systems running smoothly. It solves the problem of downtime and miscounts in PLC-driven processes, ensuring reliable data transfer, accurate monitoring, and efficient control in demanding operations.




Key Features & Specifications – Phoenix Contact DEK-OE-24DC/24DC/100kHz : 2964283

Feature Details Benefit
Nominal Input Voltage 24 V DC (range 19.2–28.8 V DC) Ensures compatibility with standard control systems
Transmission Frequency Up to 100 kHz Reliable high-speed switching for fast processes
Output Range 4–30 V DC, max 50 mA Flexible integration with various load requirements
Response Time 1.5 µs (on) / 2 µs (off) Ultra-fast operation, minimizing delays in control tasks
Protective Features Surge suppression, reverse polarity, LED status Extends service life and simplifies fault diagnostics
Insulation 2.5 kV AC test voltage Strong separation of input and output circuits
Operating Temperature -20 °C to +60 °C Reliable function in demanding industrial conditions
Dimensions 6.2 mm (W) × 80 mm (H) × 56 mm (D) Space-saving DIN rail mounting in compact panels
Housing Color Green (RAL 6021) Consistent with Phoenix Contact terminal block system
Standards IEC 60947-5-1 compliance Meets global safety and reliability requirements
Connection Method Screw terminal, 0.2–2.5 mm² conductors Secure wiring and easy installation
Mounting Type DIN rail, zero spacing allowed Efficient installation even in dense control cabinets

Download DEK-OE-24DC/24DC/100kHz 2964283 Datasheet




Commercial Data – Phoenix Contact DEK-OE-24DC/24DC/100kHz : 2964283

Commercial Data Details
GTIN Number 4017918107413
Customs Tariff Number 85364190
Weight per Piece (Excl. Packaging) 18.172 g
Weight per Piece (Incl. Packaging) 21.6 g
Country of Origin China (CN)




The Applications

1. High-Speed Counting in Packaging Lines

Modern packaging machines often need to track thousands of items per minute. Encoders and sensors generate fast pulse trains that must be processed without delay. By inserting the DEK-OE-24DC/24DC/100kHz between the sensor and controller, signals are isolated from electrical noise and interference. Its 100 kHz transmission capacity ensures no pulses are lost, and the microsecond response time maintains precision even at maximum speed. Surge and polarity protection prevent sudden spikes from damaging sensitive PLC inputs. The result is reliable item counting, reduced downtime, and higher accuracy in automated bottling, filling, or labeling systems.

2. Test System Signal Isolation

In electronics testing environments, controllers often need to switch signals on and off rapidly while protecting measuring devices. The DEK-OE-24DC/24DC/100kHz provides galvanic isolation between the test controller and device under test, ensuring that disturbances cannot feed back into the control system. Its compact DIN-rail design makes integration into test benches or racks straightforward. With sub-microsecond response times, the relay can keep up with fast switching cycles demanded in automated verification routines. Engineers benefit from stable measurements, longer equipment lifespan, and improved safety when handling delicate prototypes or high-density boards in production testing.

3. Motion Control and Robotics

Robotic systems and CNC machines depend on multiple sensors to monitor axis position, speed, and safety limits. These environments are prone to interference from motor drivers and high-current switching. Using the DEK-OE-24DC/24DC/100kHz as a signal decoupler ensures that feedback signals remain clean and unaffected by surrounding electrical noise. The relay’s high-frequency capability allows it to handle rapid pulse edges from encoders without introducing delay. Its protective circuitry also guards against transient voltages that could damage controllers. This leads to smoother robotic motion, precise cutting paths in CNC machining, and greater confidence in the reliability of automation systems.

4. Rapid Actuator and Valve Control

Process automation often requires valves or actuators to be pulsed at very high rates, such as in dosing, spraying, or pneumatic operations. Mechanical relays wear quickly in these scenarios, while the DEK-OE-24DC/24DC/100kHz solid-state design switches silently and without physical contact. With a 100 kHz transmission frequency, it handles fast pulsing demands with ease, and its surge suppression safeguards against inductive spikes created by solenoids. Engineers can maintain precise timing in flow control while extending the service life of both actuators and the control system. The result is efficient, repeatable processes that enhance productivity and reduce maintenance costs.




Related Products & Accessories – Phoenix Contact DEK-OE-24DC/24DC/100kHz : 2964283

Category Product Part Number Description Benefit
Insertion Bridge (Red) EB 2-DIK RD 2716693 2-position, 26 A Quick cross-connections in compact circuits
EB 3-DIK RD 2716745 3-position, 26 A Connects three terminals for simplified wiring
EB 4-DIK RD 2716758 4-position, 26 A Stable bridging for four terminals
EB 5-DIK RD 2716761 5-position, 26 A Flexible bridging in multi-terminal circuits
EB 10-DIK RD 2716774 10-position, 26 A Supports grouped terminal connections
EB 80-DIK RD 2715953 80-position, 26 A Extensive bridging in large installations
Insertion Bridge (Blue) EB 5-DIK BU 2716677 5-position, 26 A Color-coded option for circuit distinction
EB 10-DIK BU 2716680 10-position, 26 A Easy identification of parallel wiring
EB 80-DIK BU 2715940 80-position, 26 A Long bridging option for large panels
Separating Plate D-DEK 1,5 GN 2716949 Green end plate Safe termination of terminal rows
Marking Strip ZB 6:UNBEDRUCKT 1051003 Unmarked, 10 labels Custom labeling flexibility
ZB 6,LGS:FORTL.ZAHLEN 1051016 Numbered, 10 labels Consecutive numbering for easy ID
ZB 6/WH-100:UNBEDRUCKT 5060935 Unmarked, 1000 labels Bulk pack for large projects
Complementary Terminal Block DIKD 1,5 2715979 Initiator/actuator, 250 V / 24 A Expands actuator connections
