USD 48.01
NAMUR inductive slot proximity sensor. Features 3.5mm slot width, 5-25V operating voltage, IP67 protection, and SIL 2 safety rating. 3000 Hz frequency.

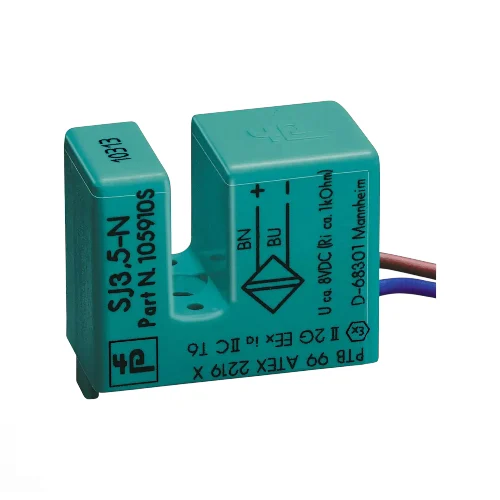

The Pepperl+Fuchs SJ3,5-N is a high-performance inductive slot proximity sensor designed for precision industrial automation and intrinsically safe environments. Featuring a 3.5 mm slot width and a normally closed (NC) NAMUR output, the sensor reliably detects metal targets such as flags or gear teeth passing through the gap. Encased in a rugged PBT housing, it provides IP67-rated protection against dust and water ingress, ensuring longevity in harsh industrial conditions. The device operates optimally at a nominal 8.2 VDC, supports a broad 5 to 25 V operating range, and delivers an exceptionally high switching frequency of up to 3000 Hz for high-speed dynamic tracking. Functionally verified up to SIL 2 per IEC 61508, the SJ3.5-N guarantees critical safety reliability. It comes equipped with 500 mm flexible LiY connection leads for seamless integration into control panels and intrinsically safe barriers.
| Parameter | Value |
|---|---|
| Slot Width | 3.5 mm |
| Depth of Immersion (Lateral) | 5 to 7 mm (typ. 6 mm) |
| Switching Function | Normally closed (NC) |
| Output Type | NAMUR (2-wire) |
| Nominal Voltage | 8.2 V (Ri approx. 1 kΩ) |
| Operating Voltage | 5 - 25 V |
| Switching Frequency | 0 - 3000 Hz |
| Hysteresis | 0.41 - 0.6 mm |
| Current Consumption (Plate not detected) | ≥ 3 mA |
| Current Consumption (Plate detected) | ≤ 1 mA |
| Safety Integrity Level (SIL) | SIL 2 |
| Degree of Protection | IP67 |
| Housing Material | PBT |
| Connection Type | Flexible leads LiY, 500 mm |
Integration of the SJ3.5-N sensor onto encoder discs or gear tracking assemblies in high-speed rotating industrial machinery.
Enables precise, contactless monitoring of fast-moving gears without wear, utilizing the 3000 Hz maximum frequency for accurate and real-time RPM calculation.
Utilizing the sensor's NAMUR interface to monitor the limit positions of mechanical block valves in chemical process industries.
Safely detects metal flags indicating valve open/closed status in hazardous or explosive environments using low-voltage, intrinsically safe principles.
Deploying the IP67-rated slot sensor on high-throughput continuous packaging lines to trigger actuators based on mechanical cam cycles.
Provides robust, non-contact cam detection that heavily resists environmental dust and washdown liquids, preventing the mechanical failure typical of physical limit switches.
