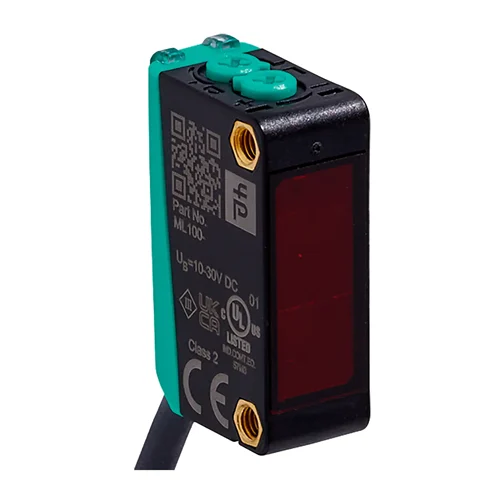

Name: Pepperl+Fuchs ML100-8-H-350-RT/103/115b Background Suppression Sensor - INOSAKI
SKU: PEPPERL-FUCHS-ML100-8-H-350-RT/103/115b
Price: 37.00 USD
Availability: InStock

Technical Overview

The Pepperl+Fuchs ML100-8-H-350-RT/103/115b is a miniature background suppression sensor designed for reliable object detection. Utilizing triangulation with modulated visible red light, it features an adjustable detection range of 5 to 350 mm and is not sensitive to ambient light. It includes highly visible LEDs for power and switching status, and comes with a fixed cable with an M12 plug for connection.

Key Features

Miniature design for space-constrained applications.
Easy to use with intuitive setup.
Very bright, highly visible red light spot for simple alignment.
Full metal thread mounting for secure installation.
Highly visible LEDs indicate power ON and switching state.
Not sensitive to ambient light interference.
Adjustable detection range from 5 mm to 350 mm.
Fixed cable with M12 plug for electrical connection.
1 PNP output, short-circuit and reverse polarity protected.

Technical Specification Matrix

Parameter	Value
Detection Range	5 ... 350 mm
Operating Voltage	10 ... 30 V DC
Ripple Max	10 %
No-load Supply Current (I0)	< 20 mA
Switching Type	Adjustable (default: light-on)
Signal Output	1 PNP output, short-circuit protected, reverse polarity protected, open collector
Switching Voltage Max	30 V DC
Switching Current Max	100 mA (resistive load)
Voltage Drop (Ud)	≤ 1.5 V DC
Switching Frequency (f)	500 Hz
Response Time	1 ms
Product Standard	EN 60947-5-2
Approvals	cULus Listed, Class 2 Power Source
Ambient Temperature	-30 ... 60 °C (-22 ... 140 °F)
Storage Temperature	-40 ... 70 °C (-40 ... 158 °F)
Degree of Protection	IP67
Connection	2 m fixed cable
Housing Material	PC (Polycarbonate)
Optical Face Material	PMMA
Light Source	LED
Light Type	Modulated visible red light

Industrial Applications

1. Automated Conveyor Belt Object Detection

Accurately detecting the presence or absence of diverse objects on an industrial conveyor belt, regardless of their color or the background conveyor material, to ensure proper item sorting or processing.

Problem Solved

The background suppression feature and 5-350mm detection range allow reliable detection of objects (even with varying reflectivity) without false triggers from the conveyor belt itself. The fast 1ms response time and 500Hz switching frequency are critical for high-speed lines. The IP67 rating protects against dust and occasional splashes in manufacturing environments.

ConveyorObject DetectionBackground SuppressionHigh-SpeedIP67PNP

2. Small Part Assembly Verification in Robotics

Verifying the correct placement or presence of small components within tight spaces during automated assembly processes using robotic arms.

Problem Solved

The miniature design (1.1x3.1x2.0 cm) enables integration into robotic end-effectors or confined assembly jigs. The precise 5-350mm detection range allows for accurate positioning and presence checks of small parts. The 10-30V DC operation is standard for robot controllers, and the PNP output integrates easily.

Robotic AssemblySmall Part DetectionMiniature SensorPrecisionPNP Output10-30V DC

3. Door/Gate Position Sensing in Harsh Environments

Monitoring the open/closed status of industrial doors or safety gates in dusty or humid factory settings, ensuring personnel safety and process control.

Problem Solved

The robust IP67 degree of protection ensures reliable operation in environments with dust, splashing water, or high humidity. The wide operating temperature range (-30 to 60 °C) allows for use in unheated warehouses or areas with temperature fluctuations. The visible red light spot simplifies alignment during installation.

Industrial SafetyGate PositionIP67Dust ResistantWide Temperature RangeRed Light
