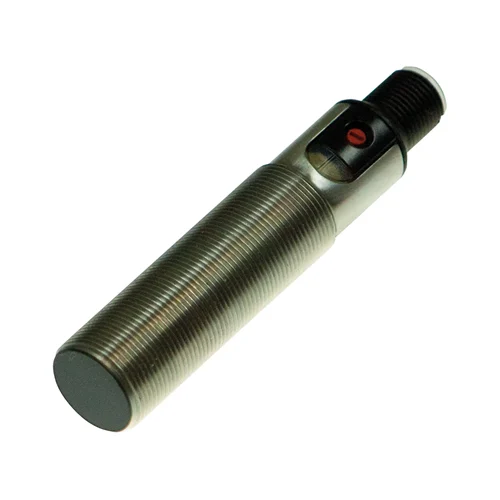

Name: Pepperl+Fuchs CBB8-18GS75-E2-V1 Capacitive Sensor M18 - INOSAKI
SKU: PEPPERL-FUCHS-CBB8-18GS75-E2-V1
Price: 113.28 USD
Availability: InStock

Technical Overview

M18 capacitive proximity sensor with 1-8mm adjustable sensing, PNP NO output, 10-30VDC. Features stainless steel housing, PBT face, IP67, and M12 connector.

Key Features

Normally open (NO) switching function.
PNP output type.
Rated operating distance of 1 to 8 mm, flush installation.
Wide operating voltage range of 10-30 V DC.
Robust stainless steel 1.4305 / AISI 303 housing and PBT sensing face.
IP67 protection degree for harsh industrial environments.
Equipped with green operating display LED and yellow switching state indication LED.
M12 x 1, 3-pin connector for easy installation.
Reverse polarity and pulsing short-circuit protection.

Technical Specification Matrix

Parameter	Value
Switching function	Normally open (NO)
Output type	PNP
Rated operating distance (sn)	1 ... 8 mm
Installation	Flush
Output polarity	DC
Operating voltage (UB)	10 ... 30 V DC
Switching frequency (f)	0 ... 100 Hz
Reverse polarity protection	Reverse polarity protected
Short-circuit protection	Pulsing
Voltage drop (Ud)	≤ 1.5 V
Operating current (IL)	0 ... 100 mA
No-load supply current (I0)	≤ 18 mA
Time delay before availability (tv)	≤ 300 ms
Ambient temperature	-25 ... 85 °C (-13 ... 185 °F)
Connection type	Connector M12 x 1, 3-pin
Housing material	Stainless steel 1.4305 / AISI 303
Sensing face	PBT
Protection degree	IP67
Housing diameter	M18 (18 mm)
Physical Weight (kg)	0.08
Dimensions L x W x H (cm)	8.8 x 1.8 x 1.8

Industrial Applications

1. Liquid Level Detection in Non-Metallic Tanks

This sensor can accurately detect the presence or absence of various liquids, including water, oils, and chemicals, through the walls of non-metallic tanks or containers. Its adjustable sensing distance from 1 to 8 mm allows for fine-tuning based on tank wall thickness and liquid properties, ensuring reliable level monitoring without direct contact.

Problem Solved

Prevents costly overfilling or dry-running conditions in tanks by providing non-invasive liquid level feedback, eliminating the need for tank wall penetration and ensuring safety with its wide operating voltage (10-30VDC) and robust IP67 rating.

Liquid levelnon-contactnon-metallic tankfill level monitoringoverfill protectiondry run preventionadjustable sensitivitycapacitive sensing

2. Granular Material and Powder Detection in Hoppers

Ideal for monitoring the fill levels of granular materials such as plastic pellets, grains, or powders within hoppers, silos, or chutes in industrial processing and packaging lines. The sensor's ability to detect non-conductive materials and its adjustable sensitivity make it versatile for varying material densities and compositions.

Problem Solved

Ensures continuous material flow and prevents costly production stoppages due to material blockages or low levels. The M18 stainless steel housing and IP67 protection allow it to operate reliably in dusty and potentially abrasive environments.

Granular material detectionpowder levelmaterial flow monitoringblockage detectionnon-metallic containerprocess controladjustable sensitivity

3. Object Detection on Conveyor Belts in Harsh Environments

Used for reliable presence detection of objects, regardless of their material (plastic, wood, certain metals) or irregular shapes, on conveyor belts within demanding industrial settings. Its non-contact operation and adjustable sensing range make it suitable for diverse material handling tasks.

Problem Solved

Provides accurate object detection for automated sorting, counting, or precise positioning applications. The sensor's IP67 protection and stainless steel housing ensure long-term durability and performance even when exposed to dust, moisture, or light impacts on a production line.

Object detectionconveyor systemmaterial handlingsortingcountingpositioningIP67harsh environmentnon-contact sensing
