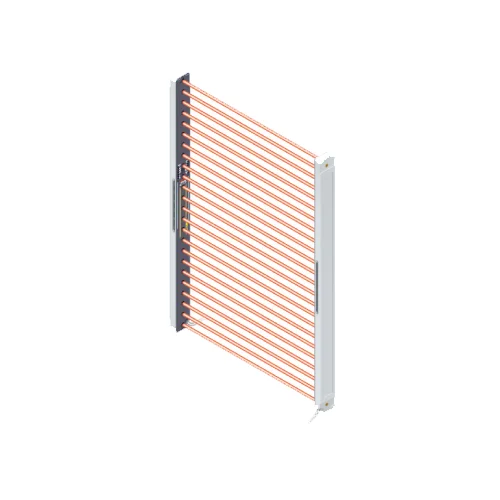

Name: Panasonic SF4C-F23 Safety Light Curtain - INOSAKI
SKU: Panasonic-SF4C-F23
Price: 1353.73 USD
Availability: InStock

Technical Overview

Type 4 PLe SIL3 safety light curtain featuring 23 beam channels, 10mm pitch for 14mm finger protection, 240mm protective height, and IP67 ultra-slim housing.

Key Features

Ultra-slim 13.2 mm profile with a dead-zoneless design to save mounting space
Type 4, PLe, and SIL3 certified safety rating for high-risk industrial environments
Finger protection capability with a 10 mm beam pitch detecting ø14 mm opaque objects
23 beam channels providing a protective field height of 240 mm
0.1 to 3.0 m operating sensing range
Fast response time of 9 ms or less (OFF response) / 90 ms or less (ON response)
Integrated muting and floating/fixed blanking functions
Dual OSSD1 and OSSD2 control outputs, switch-selectable PNP or NPN
Robust IP67-rated polycarbonate enclosure for demanding washdown conditions
Highly visible multi-purpose LED indicator for easy status and alignment monitoring

Technical Specification Matrix

Parameter	Value
Type	Finger Protection Type
Beam Channels	23
Beam Pitch	10 mm
Minimum Sensing Object	ø14 mm opaque object
Protective Height	240 mm
Operating Sensing Range	0.1 to 3 m
Supply Voltage	24 V DC (+10% / -15%)
Control Outputs (OSSD)	2x PNP or NPN open-collector (switchable)
Maximum Switched Current	200 mA
Response Time (ON to OFF)	9 ms or less
Response Time (OFF to ON)	90 ms or less
Degree of Protection	IP67 / IP65 (conforming to IEC)
Enclosure Material	Polycarbonate alloy housing and sensing surface
Connection Method	5m fixed cable
Safety Category	Type 4 (IEC 61496-1/2), PLe Category 4 (ISO 13849-1), SIL3 (IEC 61508)
Physical Weight (kg)	0.67
Dimensions L x W x H (cm)	3 x 1.32 x 25.2

Industrial Applications

1. Semiconductor Assembly Line Guarding

High-speed pick-and-place systems and wire bonding machinery are extremely compact. The 13.2mm ultra-slim thickness and dead-zoneless design of the safety light curtain allows it to be mounted directly adjacent to access windows without taking up precious robotic cell footprint.

Problem Solved

Eliminates mechanical safety gates that slow down production, while protecting technicians' fingers (ø14 mm minimum sensing capability) from mechanical pinch points during quick component adjustments.

Finger ProtectionUltra-slim ProfileRobotic WorkcellsType 4 PLe SIL3Dead-zoneless Mounting

2. Automated Packaging Conveyor Muting

Conveyor systems feeding components into a robotic shrink wrapper or cartooning area. The integrated muting function of the light curtain disables the safety output when products pass through but immediately trips if a human hand reaches in.

Problem Solved

Avoids false machine stoppages caused by products entering the hazard zone while ensuring continuous and strict 14mm-pitch safety guarding for operators.

Muting FunctionBlanking FunctionConveyor SafetyDual OSSD OutputsPNP/NPN Switchable

3. High-Humidity Food & Beverage Secondary Packaging

Small-scale bottling or secondary packaging machinery operating in humid environments. The IP67 ingress protection rating of the polycarbonate alloy enclosure allows the device to withstand ambient moisture, occasional splashing, and mild washdowns.

Problem Solved

Standard safety sensors fail under moisture ingress and condensation, causing expensive downtime; the IP67-certified safety light curtain provides uninterrupted Type 4 safety performance.

IP67 ProtectionPolycarbonate HousingWashdown SafeHumid EnvironmentsType 4 Category 4
