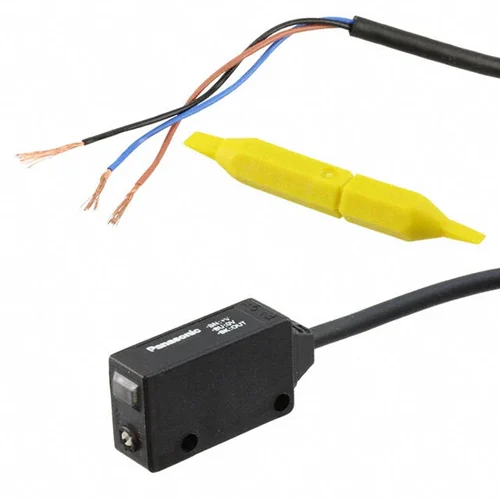

Name: Panasonic EX-44 Convergent Reflective Photoelectric Sensor - INOSAKI
SKU: Panasonic-EX-44
Price: 73.88 USD
Availability: InStock

Technical Overview

Compact convergent reflective sensor with a 10-70mm sensing range and 0.5ms response time. Features an IP67 rating and NPN open-collector output.

Key Features

Convergent reflective sensing method for reliable detection in a limited area.
Sensing range of 10 to 70 mm with a convergent point of 40mm.
Fast response time of 0.5 ms or less.
IP67 protection rating for use in dusty or wet environments.
Infrared LED light source.
Equipped with both an operation indicator (Red LED) and a stability indicator (Green LED).
NPN open-collector transistor output.

Technical Specification Matrix

Parameter	Value
Sensing Range	10 to 70 mm
Sensing Method	Convergent Reflective
Supply Voltage	12 to 24 V DC ±10%
Current Consumption	35 mA or less
Output	NPN open-collector transistor
Response Time	0.5 ms or less
Light Source	Infrared LED
IP Rating	IP67
Operating Temperature	-25 to +55 °C
Housing Material	PBT (Enclosure), Polycarbonate (Lens)
Connection	2m Cable
Repeatability	0.2mm
Physical Weight (kg)	0
Dimensions L x W x H (cm)	3.7 x 1.8 x 1

Industrial Applications

1. Small Component Detection on Conveyors

Used in a high-speed electronics assembly line to confirm the presence of small surface-mount devices (SMDs) on a printed circuit board (PCB) before it enters the reflow oven. The sensor is mounted directly above the conveyor belt.

Problem Solved

The sensor's narrow, convergent beam and fast 0.5ms response time allow it to reliably detect very small components at high conveyor speeds, preventing costly errors where components are missing before the soldering process. The IP67 rating protects it from dust and occasional cleaning sprays in the factory environment.

Convergent Reflective0.5ms Response TimeMiniature Object DetectionIP67Conveyor Sensing

2. Pharmaceutical Vial Counting and Positioning

Installed on a pharmaceutical bottling line to count clear or semi-opaque vials as they pass a specific point. The sensor ensures each vial is correctly positioned before being filled or capped.

Problem Solved

Standard diffuse sensors can struggle with reflective or transparent materials. The EX-44's convergent sensing method provides stable detection of the vials, independent of their color or transparency. Its high repeatability (0.2mm) ensures precise position verification for automated filling heads, reducing spillage and waste.

Convergent SensingVial DetectionHigh RepeatabilityNPN OutputBottling Line Automation

3. Lead Frame Detection in Semiconductor Manufacturing

Integrated into a die-bonding machine to detect the leading edge of a metallic lead frame. The sensor's output triggers the machine's pick-and-place mechanism to accurately position the semiconductor die.

Problem Solved

The application requires precise, non-contact detection within a confined space. The sensor's compact dimensions (10x18x37mm) allow for easy integration. Its focused convergent point ensures that only the lead frame is detected, ignoring the background just millimeters away, which is critical for preventing machine crashes and ensuring accurate die placement.

Compact SensorPrecision PositioningConvergent PointLead Frame DetectionSemiconductor Automation
