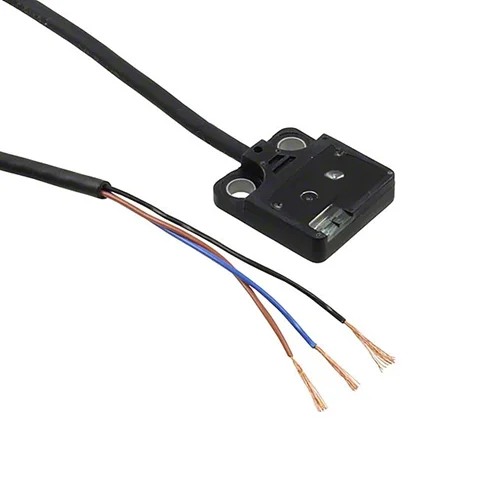

Name: Panasonic EX-24A Ultra-Compact Photoelectric Sensor - INOSAKI
SKU: Pananonic-EX-24A
Price: 65.28 USD
Availability: InStock

Technical Overview

Ultra-compact convergent reflective sensor (2-25mm) with NPN Light-ON output, IP67, and 0.5ms response. Ideal for precise, high-speed detection in tight spaces.

Key Features

Ultra-compact, front-sensing design with 4.5mm thickness.
Convergent reflective sensing method for stable detection.
Wide sensing range of 2 to 25mm.
NPN open-collector transistor output with Light-ON operation.
High IP67 protection rating for harsh industrial environments.
Built-in sensitivity adjuster for fine-tuning.
Bright 2-color indicator for clear operation and stability status.
Fast response time of 0.5ms or less for high-speed applications.
Operates on a standard 12 to 24VDC supply.
Durable polyethylene terephthalate enclosure and polyalylate lens.

Technical Specification Matrix

Parameter	Value
Sensing Range	2 to 25 mm
Output Type	NPN Open Collector
Operation Mode	Light-ON
Supply Voltage	12 to 24 VDC ±10% (Ripple P-P 10% or less)
Max Output Current	50 mA
Current Consumption	13 mA or less (Receiver), 10 mA or less (Emitter)
Response Time	0.5 ms or less
IP Rating	IP67 (IEC)
Operating Temperature	-25°C to +55°C
Storage Temperature	-30°C to +70°C
Cable	0.1 mm² 3-core cabtyre cable, 2 m long
Body Material	Enclosure: Polyethylene terephthalate, Lens: Polyalylate
Min Detectable Object	Ø 0.1 mm copper wire
Repeatability	0.1 mm
Physical Weight (kg)	0.02
Dimensions L x W x H (cm)	0.45 x 1.6 x 1.8

Industrial Applications

1. Precision Part Detection in Automated Assembly Lines

In high-speed automated manufacturing, the EX-24A can precisely detect small components like chip parts or minute mechanical fasteners on conveyor belts, ensuring accurate placement and preventing production errors.

Problem Solved

Its ultra-compact size (4.5mm thick), convergent sensing (2-25mm range), and ability to detect objects as small as Ø 0.1mm copper wire with 0.1mm repeatability and sub-millisecond response time (<0.5ms) make it ideal for detecting tiny objects in space-constrained environments without impeding line speed.

Micro-component detectionAutomated assemblyHigh-speed sensingSpace-constrained environmentsQuality controlMiniature

2. Wafer Protrusion Check in Semiconductor Manufacturing

The sensor is perfectly suited for detecting minute protrusions or irregularities on semiconductor wafers, which is critical for preventing damage during processing and maintaining product integrity in advanced electronics fabrication.

Problem Solved

The EX-24A's precise convergent sensing (0.1mm minimum detectable object), compact form factor, and stable detection against reflective surfaces (common for wafers) provide reliable non-contact inspection. Its IP67 rating ensures durability and compatibility with cleanroom conditions where environmental control is paramount.

Semiconductor inspectionWafer integrityNon-contact sensingCleanroom compatibilityPrecision measurementSurface defect detection

3. Object Sensing in Small Openings or Gaps of Industrial Machinery

This sensor can effectively monitor the presence or passage of objects through narrow openings or within confined spaces in industrial machinery, enhancing operational safety and process control.

Problem Solved

The extremely small body dimensions (18x16x4.5mm) and front-sensing capability allow the EX-24A to be mounted in minimal gaps or tight spaces where larger sensors cannot operate. Its standard 12-24VDC supply voltage and NPN output are fully compatible with typical industrial control systems.

Confined space detectionGap monitoringMachine automationPresence sensingCompact designIndustrial control
