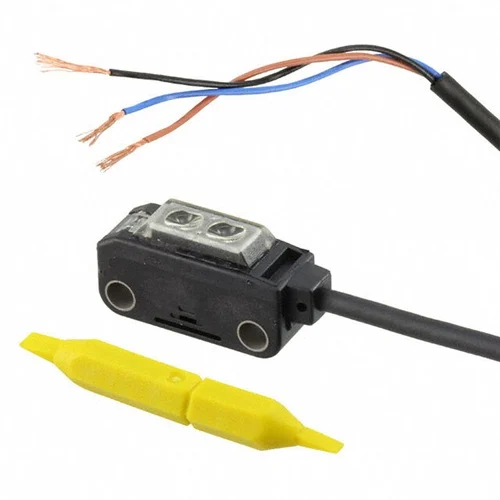

Name: Panasonic EX-22B-PN Ultra-compact Photoelectric Sensor - INOSAKI
SKU: Pananonic-EX-22B-PN
Price: 78.96 USD
Availability: InStock

Technical Overview

Diffuse reflective side-sensing photoelectric sensor, 5-160mm range, PNP Open Collector, 12-24VDC, Dark-ON, IP67, 0.5ms response.

Key Features

Ultra-compact design for space-saving installation (8.2 x 19 x 10.5 mm).
Diffuse reflective sensing method with side sensing configuration.
Sensing range of 5 to 160 mm for versatile applications.
PNP Open Collector output with Dark-ON operation.
Operates on a 12 to 24 VDC supply voltage.
Fast response time of 0.5 ms.
High environmental protection with IP67 rating.
Incorporates a sensitivity adjuster.
Bright 2-color indicator for operation and stability.
Red LED modulated light source (680 nm peak wavelength).
Enhanced resistance to inverter light and other external light interference.

Technical Specification Matrix

Parameter	Value
Sensing Method	Diffuse Reflective
Sensing Range	5 to 160 mm
Output Type	PNP Open Collector
Operation Mode	Dark-ON
Supply Voltage	12 to 24 V DC ±10% (Ripple P-P 10% or less)
Current Consumption	13 mA or less
Response Time	0.5 ms
Light Source	Red LED (modulated), 680 nm peak emission wavelength
IP Rating	IP67
Enclosure Material	Polyethylene terephthalate
Lens Material	Polyalylate
Cable	0.1 mm² 3-core cabtyre cable, 2 m long
Operating Ambient Temperature	-25 to +55 °C
Ambient Humidity	35 to 85 % RH (Storage: 35 to 85 % RH)
Vibration Resistance	10 to 500 Hz, 3 mm double amplitude (max. 20 G) in X, Y, Z directions for 2 hours each
Shock Resistance	500 m/s² (approx. 50 G) in X, Y, Z directions three times each
Physical Weight (kg)	0.02
Dimensions L x W x H (cm)	1.05 x 0.82 x 1.9

Industrial Applications

1. High-Speed Small Component Detection on Automated Assembly Lines

The ultra-compact dimensions (8.2 x 19 x 10.5 mm) and rapid 0.5 ms response time enable the precise detection of small objects or components moving at high speeds on automated assembly lines, particularly in confined spaces where larger sensors are impractical. The 5-160 mm sensing range provides flexibility in sensor mounting relative to the target.

Problem Solved

Ensures accurate and rapid detection of miniature parts in space-constrained, high-throughput manufacturing processes, preventing jams or misalignments.

Ultra-compactHigh-speed detectionSmall object sensingAutomated assemblyConfined space

2. Non-Contact Liquid Level Monitoring in Small Industrial Tanks

With its IP67 rating and diffuse reflective sensing capability, this sensor is suitable for non-contact level detection of opaque or translucent liquids in small to medium industrial tanks. Its compact size allows for unobtrusive installation in process areas with limited real estate, offering a reliable alternative to contact-based level sensors.

Problem Solved

Provides accurate and durable liquid level monitoring in challenging industrial environments where space is restricted or where contact with the liquid is undesirable.

Liquid level detectionNon-contactIP67Diffuse reflectiveSmall tank monitoring

3. End-of-Travel Position Sensing for Miniature Actuators

The robust IP67 construction and compact form factor (8.2 x 19 x 10.5 mm) make the EX-22B-PN ideal for reliably determining the end-of-travel position of miniature pneumatic or electric actuators. It can be integrated directly into the actuator's housing or mounted in extremely tight spots to confirm full extension or retraction of machine components, even in environments with dust or water splashes.

Problem Solved

Ensures precise and reliable position feedback for miniature linear or rotary actuators in industrial machinery operating in potentially harsh conditions.

Actuator position sensingEnd-of-travel detectionIP67Miniature actuatorsRobust sensing
