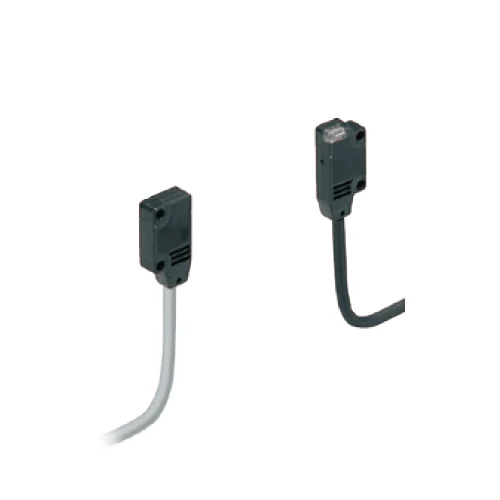

Name: Panasonic EX-11SA Ultra-Slim Photoelectric Sensor - INOSAKI
SKU: Pananonic-EX-11SA
Price: 55.92 USD
Availability: InStock

Technical Overview

Ultra-slim thru-beam NPN photoelectric sensor with 150mm range, ø0.5mm min. object detection, 0.5ms response, IP67, and 12-24VDC operation.

Key Features

Ultra-slim body, only 3.5mm thick.
Thru-beam sensing with Red LED light source.
Sensing range of 150mm.
Detects objects as small as ø0.5mm.
High-speed 0.5ms response time.
IP67 waterproof rating.
Operates on 12 to 24 VDC.
NPN open-collector output with Light-ON mode.
Incorporates short-circuit protection.
Flexible mounting options.
Excellent repeat accuracy of 0.05mm.
Polyarylate enclosure and lens material.

Technical Specification Matrix

Parameter	Value
Sensor Type	Photoelectric Thru-beam
Sensing Range	150 mm
Minimum Detectable Object	ø0.5 mm opaque object
Output Configuration	NPN Open-Collector Transistor
Output Mode	Light-ON
Supply Voltage	12 to 24 V DC ±10% (Ripple P-P 10% or less)
Current Consumption	Emitter: 10 mA or less, Receiver: 10 mA or less
Maximum Source Current	50 mA
Response Time	0.5 ms or less
Repeatability (perpendicular to sensing axis)	0.05 mm or less
Light Source	Red LED (Peak emission wavelength: 680 nm, modulated)
Protection Rating	IP67 (IEC)
Ambient Temperature	-25 to +55 °C (no dew condensation or icing)
Ambient Humidity	35 to 85 % RH
Short-Circuit Protection	Incorporated
Enclosure Material	Polyarylate
Lens Material	Polyarylate
Connection	2 m cable (0.1 mm² 3-core cabtyre cable for receiver, 2-core for emitter)
Physical Weight (kg)	0.02
Dimensions L x W x H (cm)	1.45 x 1 x 0.35

Industrial Applications

1. Precision Part Detection in Automated Assembly Lines

This sensor is ideal for integration into automated assembly lines, particularly for electronics or small mechanical components. Its ultra-slim profile and narrow beam facilitate installation in extremely confined spaces, enabling precise detection of tiny parts.

Problem Solved

The compact design (3.5mm thick) allows the sensor to fit where conventional sensors cannot, ensuring reliable presence/absence detection of minute objects (ø0.5mm minimum detectable object) with high repeatability (0.05mm), preventing assembly errors and improving quality control.

Micro-component detectionAutomated assemblyPrecise positioningCompact integrationSmall-part feedingHigh repeatability

2. Edge Detection for Web or Film Processing

The EX-11SA can be utilized in continuous web or film processing machinery to accurately detect and control the edge position of thin materials, crucial for precise cutting, winding, or printing operations.

Problem Solved

Its narrow beam and high repeatability (0.05mm) provide highly accurate edge detection for delicate and thin materials. The sensor's small size allows for close-proximity mounting of multiple units for fine control across a wider web, and the 0.5ms response time ensures real-time feedback for dynamic process adjustments.

Web guidingEdge sensingFilm processingPrecise alignmentHigh-speed responseMaterial handling

3. Tool Position Verification in Robotics or CNC Machines

This photoelectric sensor is suitable for integration into robotic end-effectors or CNC machine tool changers to verify the correct seating or presence of small tools or grippers.

Problem Solved

The robust IP67 rating ensures protection against coolants, dust, and debris prevalent in machining environments. Its miniature dimensions enable direct integration into tooling without obstructing operations, providing reliable feedback on tool presence or position (0.5ms response, 0.05mm repeatability) in demanding industrial settings.

Robotic toolingCNC machine automationTool presence detectionConfined space sensingHarsh environmentHigh reliability
