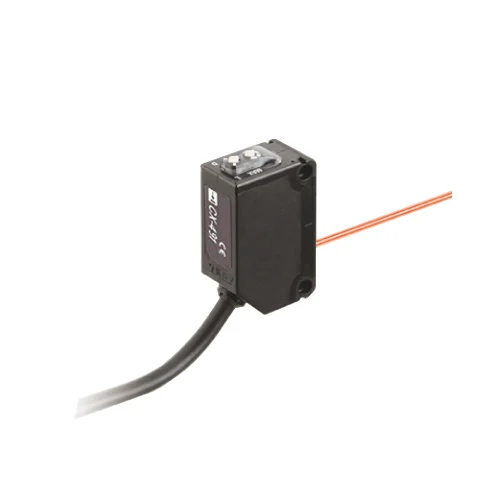

Name: Panasonic CX-493 Retroreflective Photoelectric Sensor - INOSAKI
SKU: Pananonic-CX-493
Price: 30.72 USD
Availability: InStock

Technical Overview

Compact retro-reflective photoelectric sensor with 5m sensing range, 12-24VDC input, NPN output, IP67 rating, and -25°C to +55°C operating temperature.

Key Features

Compact Rectangular Plastic body design.
Retro-reflective sensing mode, includes RF-230 reflector.
Long sensing range from 100mm to 5 meters.
NPN open-collector digital output, 100mA maximum current.
Selectable Light-ON/Dark-ON output operation.
Visible Red LED light source with 650nm wavelength.
Wide DC operating voltage range of 12V to 24V.
IP67 environmental protection rating for dust and water ingress.
Operating temperature range from -25°C to +55°C.
Durable PBT housing and tough acrylic lens.
Pre-wired with a 2m 3-core 0.2mm² cabtyre cable.
High noise resistance for stable operation in industrial settings.
0.5mm repeatability for precise detection.

Technical Specification Matrix

Parameter	Value
Series	CX-400
Sensor Body Type	Compact Rectangular Plastic
Sensing Mode	Retro-reflective
Sensing Range	0.1m to 5m (with RF-230 reflector)
Minimum Sensing Target	ø50mm
Repeatability	0.5mm
Light Source	Red LED (650nm wavelength)
Supply Voltage	12 to 24VDC
Output Type	NPN Open-Collector
Output Current	100mA
Output Mode	Light-ON/Dark-ON selectable
Housing Material	PBT (Polybutylene Terephthalate)
Lens Material	Acrylic
Operating Temperature	-25°C to +55°C
IP Rating	IP67
Cable Length	2m (pre-wired)
Physical Weight (kg)	0.05
Dimensions L x W x H (cm)	2 x 1.1 x 3.1

Industrial Applications

1. Automated Conveyor System Object Detection

This sensor can reliably detect the presence or absence of packages or components on a conveyor belt in manufacturing or logistics facilities. Its 5-meter sensing range is suitable for wider conveyors or for detection across a path, while the compact size allows for easy integration. The IP67 rating ensures durability in environments with dust or occasional splashes.

Problem Solved

Prevents product bottlenecks or miscounts by accurately confirming object passage and position, even in industrial environments.

Conveyor beltobject detectionmaterial handlingautomationIP67NPN outputretro-reflective

2. Industrial Automatic Door/Gate Control

The CX-493 can be used for activation and safety in industrial automatic door or gate systems, such as those found in warehouses or factory entrances. Its 5-meter range allows for early detection of approaching vehicles or personnel, and the robust IP67 construction handles outdoor or semi-outdoor industrial conditions, including temperature fluctuations from -25°C to +55°C.

Problem Solved

Provides reliable and safe operation of automatic doors/gates by detecting obstructions and triggering opening/closing sequences.

Automatic doorgate controlsafety sensoraccess controlwarehousingIP67-25°C to +55°C5m sensing range

3. Stacker Crane Positioning in Automated Storage and Retrieval Systems (AS/RS)

In AS/RS, the CX-493 can assist in precise positioning and collision avoidance for stacker cranes or shuttles. Its 5-meter retro-reflective sensing provides accurate distance measurement to ensure correct shelf alignment or detect obstacles within the aisle. The 0.5mm repeatability is crucial for high-precision operations in automated warehouses.

Problem Solved

Enhances the accuracy and safety of automated storage and retrieval systems by providing reliable position feedback and obstacle detection for moving equipment.

Stacker craneAS/RSautomated warehousepositioningcollision avoidance0.5mm repeatability5m sensing range
