USD 81.36

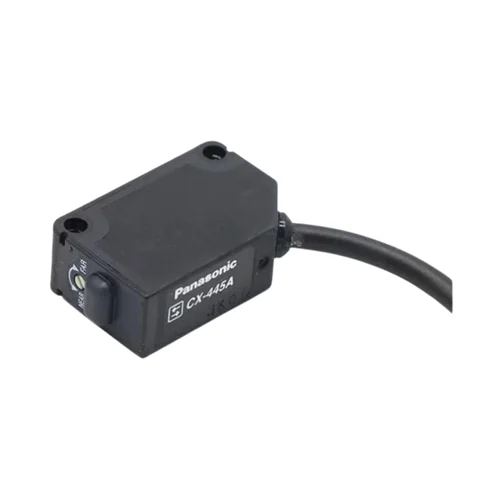

Compact NPN photoelectric sensor with BGS function, 20-100mm setting range, 1ms response time, and IP67 protection. Fixed Dark-ON operation.
Compact NPN photoelectric sensor with BGS function, 20-100mm setting range, 1ms response time, and IP67 protection. Fixed Dark-ON operation.
| Parameter | Value |
|---|---|
| Setting Range | 20 to 100 mm |
| Sensing Range (White Paper) | 10 to 50 mm |
| Supply Voltage | 12 to 24 V DC ±10% |
| Output Type | NPN open-collector transistor |
| Output Action | Dark-ON (非入光时ON) |
| Response Time | 1 ms or less |
| Sensing Method | BGS (Background Suppression) |
| Light Source | Red LED (wavelength: 650 nm, modulated) |
| Spot Diameter | Approx. 8 mm at 50 mm distance |
| Protection Rating | IP67 (IEC) |
| Ambient Temperature | -25 to +55°C |
| Cable Length | 0.5 m |
| Physical Weight (kg) | 0 |
| Dimensions L x W x H (cm) | 2 x 1.12 x 3.1 |
Utilizes the BGS (Background Suppression) feature of the CX-445B to detect packages on a conveyor belt without being falsely triggered by the moving belt or varying background reflections.
False triggering from background movement or highly reflective conveyor surfaces.
Mounted in tight spaces of assembly machinery using its compact W11.2mm x H31mm x D20mm dimensions to verify the presence of metallic or non-metallic parts during indexing.
Component space constraints in automated assembly stations preventing installation of standard-sized sensors.
Employs the precise red LED spot (approx. 8mm diameter at 50mm) to align and detect circuit board edges or component carrier positions on high-speed SMT placement machines.
Slow response times in high-speed sorting and positioning stages.
