USD 39.84

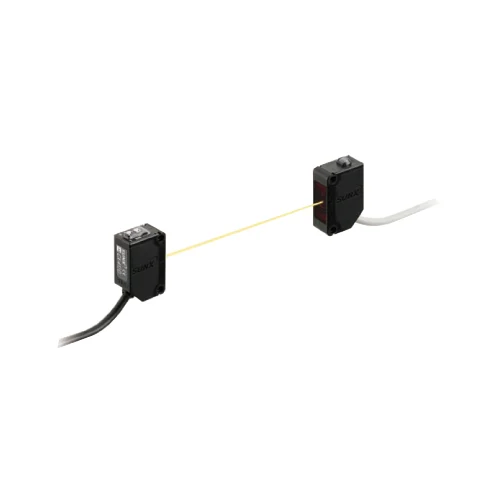

Compact IP67 thrubeam photoelectric sensor with a 30m sensing range, 12-24VDC input, NPN output, and -25°C to +55°C operating temperature.
Compact IP67 thrubeam photoelectric sensor with a 30m sensing range, 12-24VDC input, NPN output, and -25°C to +55°C operating temperature.
| Parameter | Value |
|---|---|
| Supply Voltage | 12 to 24 V DC ±10% Ripple P-P 10% or less |
| Emitter Current Consumption | 25 mA or less |
| Receiver Current Consumption | 10 mA or less |
| Output Type | NPN open-collector transistor |
| Maximum Sink Current | 100 mA |
| Applied Output Voltage | 30 V DC or less |
| Sensing Mode | Thrubeam |
| Sensing Range | 30 meters |
| Sensing Object | Ø12 mm or more opaque object (Ø0.5 mm with optional slit mask) |
| Light Source | Infrared LED |
| Repeatability | 0.5 mm |
| Operating Temperature | -25°C to +55°C |
| Ingress Protection (IP) Rating | IP67 |
| Enclosure Material | PBT enclosure, Acrylic lens |
| Physical Weight (kg) | 0.1 |
| Dimensions L x W x H (cm) | 2 x 1.1 x 3.1 |
Accurately detects packages or components on long industrial conveyor belts, even across large gaps, preventing jams or ensuring proper sorting in automated systems.
Provides reliable detection of objects over distances up to 30 meters, overcoming limitations of short-range sensors in extensive material handling systems and ensuring operational continuity.
Monitors the open/closed status of large industrial gates or doors in outdoor environments, providing real-time feedback for access control or safety interlock systems.
Operates reliably in harsh outdoor conditions, resisting dust and water (IP67), and providing long-distance sensing for wide entrances where environmental exposure is a concern.
Verifies the presence and correct positioning of pallets within a tall stacker crane or Automated Storage & Retrieval System (AS/RS), ensuring safe and efficient automated storage operations.
The 30-meter sensing range allows it to span wide aisles for pallet detection, while its compact size (3.1 x 1.1 x 2.0 cm) fits within tight machine clearances, and robust construction (IP67, -25°C to +55°C) withstands typical warehouse environments.
