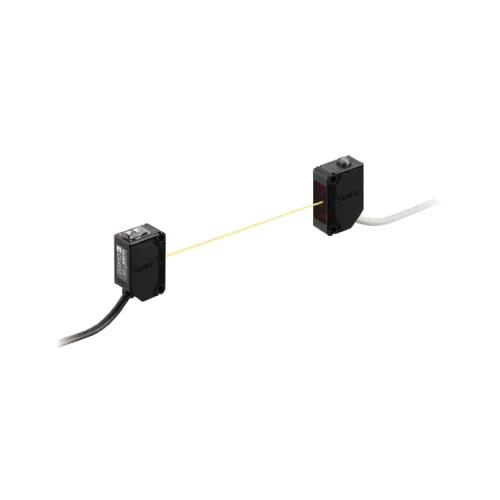

Name: Panasonic CX-413-P Through-Beam Photoelectric Sensor - INOSAKI
SKU: Pananonic-CX-413-P
Price: 39.84 USD
Availability: InStock

Technical Overview

Compact through-beam photoelectric sensor with 30m range, 0.5mm repeatability, IP67, and 12-24VDC PNP output, ideal for precision industrial object detection.

Key Features

Long sensing range of up to 30 meters (98.425 ft).
Capable of detecting opaque, translucent, or transparent objects.
High repeatability of 0.5 mm (0.020 in) or less.
Operates with a supply voltage of 12 to 24 V DC.
IP67 protection rating ensures durability against dust and water.
Fast response time of 2 ms or less for high-speed applications.
Utilizes an infrared LED emitting element with an 850 nm peak emission wavelength.
Includes a sensitivity adjuster for fine-tuning detection settings.
Features an orange operation indicator LED for clear visual feedback.
Supports ambient temperatures from -25°C to +55°C.
Excellent shock and vibration resistance.
Constructed with a PBT enclosure and acrylic lens.
Comes with a 2m long, 0.2 mm² 3-core (emitter: 2-core) cabtyre cable.

Technical Specification Matrix

Parameter	Value
Sensing Method	Through-Beam
Sensing Range	30 m (98.425 ft)
Sensing Object	Ø12 mm (Ø0.472 in) or more opaque object (can detect Ø0.5 mm with slit masks)
Supply Voltage	12 to 24 V DC ±10%, Ripple P-P 10% or less
Current Consumption (Emitter)	25 mA or less
Current Consumption (Receiver)	10 mA or less
Output Configuration	PNP Open-Collector Transistor
Maximum Source Current	100 mA
Applied Voltage (Output)	30 V DC or less (between output and +V)
Residual Voltage (Output)	2 V or less (at 100 mA), 1 V or less (at 16 mA)
Repeatability (Perpendicular to Sensing Axis)	0.5 mm (0.020 in) or less
Response Time	2 ms or less
Light Source	Infrared LED (Modulated)
Peak Emission Wavelength	850 nm
Ingress Protection (IP) Rating	IP67 (IEC)
Operating Temperature	-25°C to +55°C (-13°F to +131°F)
Storage Temperature	-30°C to +70°C (-22°F to +158°F)
Ambient Humidity	35 to 85 % RH (no dew condensation or icing)
Insulation Resistance	20 MΩ or more with 250 V DC megger
Voltage Withstand Ability	1,000 V AC for one min.
Vibration Resistance	10 to 500 Hz frequency, 1.5 mm amplitude (10 G max.) in X, Y and Z directions for two hours each
Shock Resistance	500 m/s² acceleration (50 G approx.) in X, Y and Z directions three times each
Enclosure Material	PBT (Polybutylene Terephthalate)
Lens Material	Acrylic
Cable	0.2 mm² 3-core (emitter: 2-core) cabtyre cable, 2 m long
Physical Weight (kg)	0.1
Dimensions L x W x H (cm)	3.1 x 1.12 x 2

Industrial Applications

1. Automated Warehouse Pallet Tracking

Utilizing the 30-meter sensing range, this sensor can reliably detect pallets moving across wide aisles or along long conveyor belts in large-scale automated warehousing facilities. Its IP67 rating ensures consistent operation in potentially dusty or humid environments.

Problem Solved

Prevents collisions, ensures accurate routing, and provides precise inventory tracking of goods on pallets in extensive warehousing and logistics systems.

warehouse automationpallet detectionlong-range sensinglogisticsmaterial handlingIP67

2. High-Speed Production Line Quality Control

With a rapid 2ms response time and high repeatability of 0.5mm, combined with the ability to detect small objects (down to Ø0.5mm with optional slit masks), this sensor is perfectly suited for precise, real-time inspection of small components or packaging on fast-moving manufacturing lines.

Problem Solved

Identifies defects, missing components, or incorrect product positioning in real-time on high-throughput production lines, minimizing waste and ensuring consistent product quality.

quality inspectionhigh-speed sortingsmall object detectionproduction line automationmanufacturing0.5mm repeatability

3. Outdoor Industrial Vehicle Presence Detection

The robust IP67 rating, wide operating temperature range of -25°C to +55°C, and resistance to shock and vibration make this sensor ideal for outdoor use in industrial settings. Its 30-meter sensing range allows for effective detection of large vehicles or equipment in designated zones.

Problem Solved

Enhances safety and security in outdoor industrial sites by reliably detecting the presence and movement of vehicles or heavy machinery, preventing accidents, and controlling access to hazardous or restricted areas.

industrial safetyvehicle detectionoutdoor sensingharsh environmentaccess controlIP67-25°C to +55°C
