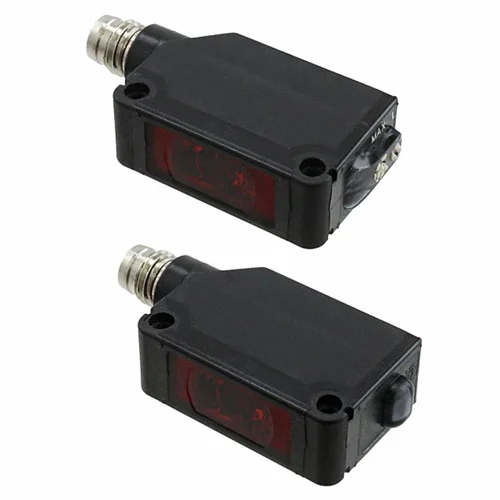

Name: Panasonic CX-411-Z Thru-beam Photoelectric Sensor - INOSAKI
SKU: Pananonic-CX-411-Z
Price: 90.48 USD
Availability: InStock

Technical Overview

Compact, IP67-rated thru-beam photoelectric sensor with 10m sensing range, 12-24VDC NPN output, and 1ms response time for reliable industrial object detection.

Key Features

Compact rectangular plastic housing (31 mm H x 11.2 mm W x 20 mm D).
Through-beam sensing mode with a 10-meter detection range.
NPN open-collector transistor output with a maximum sink current of 100 mA.
Selectable Light-ON or Dark-ON output operation.
Wide supply voltage compatibility from 12 to 24 V DC.
Fast response time of 1 ms or less.
IP67 protection rating against dust and water ingress.
Red LED light source (680nm peak emission wavelength).
Incorporated short-circuit protection.
M8 4-pin quick disconnect connector for simplified installation.
Operating ambient temperature range of -25°C to +55°C.

Technical Specification Matrix

Parameter	Value
Series	CX-400
Sensor Body Type	Compact Rectangular Plastic
Dimensions (H x W x D)	31 mm x 11.2 mm x 20 mm
Sensing Mode	Thrubeam (Through-beam)
Sensing Range	10 meters
Minimum Sensing Object (Opaque)	Ø12 mm (Ø0.5 mm with optional slit masks)
Repeatability (perpendicular to sensing axis)	0.5 mm or less
Supply Voltage	12 to 24 V DC ±10%, Ripple P-P 10% or less
Current Consumption (Emitter)	15 mA or less
Current Consumption (Receiver)	10 mA or less
Output Type	NPN open-collector transistor
Maximum Sink Current	100 mA
Applied Voltage (Output)	30 V DC or less
Residual Voltage (at 100 mA sink current)	2 V or less
Residual Voltage (at 16 mA sink current)	1 V or less
Output Operation	Light-ON/Dark-ON selectable
Short-circuit Protection	Incorporated
Response Time	1 ms or less
Light Source	Red LED (680 nm peak emission wavelength)
Operation Indicator	Orange LED (receiver, lights when output ON)
Stability Indicator	Green LED (receiver, lights under stable light/dark condition)
Power Indicator	Green LED (emitter, lights when power ON)
Sensitivity Adjuster	Continuously variable adjuster (receiver)
Protection Rating	IP67 (IEC)
Ambient Temperature	-25 to +55°C (no dew condensation or icing)
Storage Temperature	-30 to +70°C
Ambient Humidity	35 to 85% RH (storage: 35 to 85% RH)
Housing Material	PBT (Polybutylene Terephthalate)
Lens Material	Acrylic
Connector Type	M8 4-pin quick disconnect
Physical Weight (kg)	0.03
Dimensions L x W x H (cm)	2 x 1.12 x 3.1

Industrial Applications

1. High-Speed Production Line Object Counting

This sensor accurately counts fast-moving objects on conveyor belts in manufacturing and packaging lines, with its 10-meter range accommodating wide belts or longer detection spans. The compact size allows seamless integration into tight spaces.

Problem Solved

Ensures precise product counts for quality control and inventory management by reliably detecting items with its 1ms response time, preventing production errors and waste.

High-speed detectionObject countingConveyor systems1ms response time10m sensing rangeCompact form factor

2. Outdoor Material Handling & Automated Gate Monitoring

Ideal for detecting large vehicles or materials in outdoor storage facilities, loading docks, or automated gate systems. The sensor maintains performance even in harsh weather conditions due to its robust IP67 rating.

Problem Solved

Provides dependable presence detection in exterior environments, enhancing safety by preventing collisions with automated equipment or gates, while resisting dust and water ingress.

Outdoor applicationsIP67 protectionMaterial detectionAutomated gates10m sensing rangeHarsh environment

3. Machine Tool Coolant-Resistant Part Presence Sensing

Integrated into machine tools for critical tasks like tool breakage detection or verifying part presence. Its specific resistance to coolants and oils, coupled with its compact dimensions, ensures reliable operation directly within the machining environment.

Problem Solved

Guarantees consistent sensor performance in the presence of cutting fluids and oil mist, eliminating false detections that could lead to costly machine downtime or damage. The small size facilitates installation in confined machine enclosures.

Coolant resistanceOil resistanceMachine tool automationPart presence detectionIP67Compact dimensions
