Compact IP67 through-beam photoelectric sensor with 10m range, 1ms response, and PNP output, operating at 12-24VDC for precise industrial object detection.
Compact IP67 through-beam photoelectric sensor with 10m range, 1ms response, and PNP output, operating at 12-24VDC for precise industrial object detection.
| Parameter | Value |
|---|---|
| Sensor Type | Photoelectric |
| Sensing Method | Through-Beam |
| Sensing Range | 0-10 m |
| Output Configuration | PNP Open-Collector Transistor |
| Operation Modes | DARK-ON, LIGHT-ON Selectable |
| Connection Type | M8 Male 4-pin Connector |
| IP Rating | IP67 |
| Max. Operating Current (Output) | 100 mA (0.1 A) |
| Operating Temperature | -25°C to +55°C |
| Body Material | PBT Enclosure, Acrylic Lens |
| Supply Voltage | 12-24 V DC (±10% Ripple P-P 10% or less) |
| Current Consumption (Emitter) | 15 mA or less |
| Current Consumption (Receiver) | 10 mA or less |
| Response Time | 1 ms or less |
| Light Source | Red LED |
| Hysteresis | 2% or less |
| Protection Features | Short-circuit protected, Reverse polarity protected |
| Physical Weight (kg) | 0.05 |
| Dimensions L x W x H (cm) | 3.1 x 2 x 1.12 |

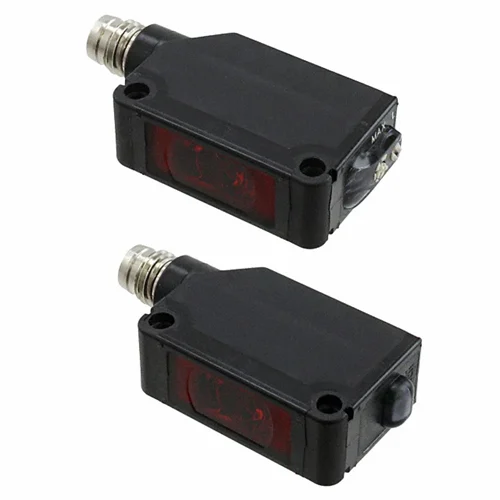

The Panasonic CX-411-P-Z provides reliable object detection on conveyor belts in industrial settings, even where dust and moisture are present.
Ensures accurate product presence/absence confirmation and prevents jams on automated conveyor systems by detecting fast-moving objects within a 10m range, protected by its IP67 rating.
This sensor is ideal for precise positioning and detection of large objects like pallets or guiding automated vehicles within a warehouse environment.
Accurately identifies the presence and position of pallets or material handling equipment for Automated Storage and Retrieval Systems (AS/RS) or AGVs, improving logistics efficiency and safety with its 10m range and robust IP67 design.
The CX-411-P-Z enables precise and rapid counting of small components in high-throughput manufacturing processes.
Provides accurate inventory control and production counts for small parts on fast-moving assembly lines, leveraging its ability to detect minute objects and its rapid 1ms response time, while its compact size allows integration into tight spaces.
