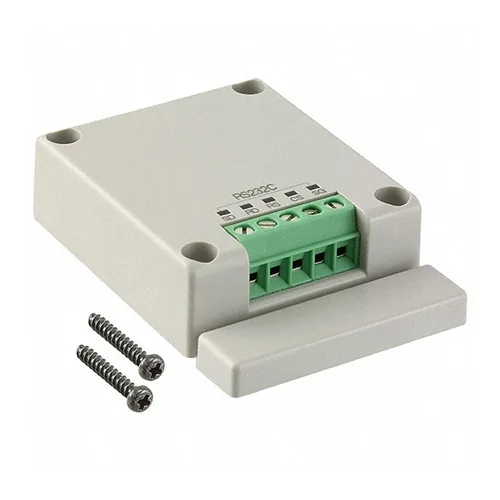

Name: Panasonic AFPX-COM1 FP-X RS-232C Communication Cassette - INOSAKI
SKU: Pananonic-AFPX-COM1
Price: 33.12 USD
Availability: InStock

Technical Overview

Single-channel RS-232C communication cassette for Panasonic FP-X/FP-XH PLCs, featuring a baud rate up to 115,200 bps and robust industrial design.

Key Features

High-Speed Communication
Versatile Compatibility with Panasonic FP-X/FP-XH PLC models
Supports multiple communication protocols (Modbus RTU, Modbus ASCII, Panasonic FP protocol)
Easy Configuration and Setup
Enhanced Data Security
Compact and Durable Design
1 Channel RS-232C interface
Equipped with CS control signal
Designed for use with FP-X Programmable Controllers

Technical Specification Matrix

Parameter	Value
Communication Interface	1 Channel RS-232C
Baud Rate	2,400 to 115,200 bps
Power Supply	24V DC (supplied from main PLC unit)
Operating Temperature	-10°C to +55°C
Certifications	CE, UL
Physical Weight (kg)	0
Dimensions L x W x H (cm)	6 x 2.54 x 9

Industrial Applications

1. Industrial Machine Data Logging

In manufacturing, a central Panasonic FP-X PLC controlling various machines needs to log operational data from an older peripheral device (e.g., a legacy sensor or HMI) that communicates via RS-232C.

Problem Solved

The AFPX-COM1, installed in a Panasonic FP-X PLC, provides the necessary 1-channel RS-232C port to connect to the legacy device. This allows the PLC to acquire critical data for monitoring, diagnostics, and historical analysis, operating reliably within its -10°C to +55°C temperature range.

RS-232Cdata acquisitionlegacy systemsindustrial controlPLC communication

2. Automated Material Handling System Integration

An automated conveyor system, managed by a Panasonic FP-X PLC, needs to communicate with a barcode scanner or RFID reader to identify products. The scanner/reader outputs data via an RS-232C serial interface.

Problem Solved

The AFPX-COM1 module integrates seamlessly with the FP-X PLC, providing a reliable 1-channel RS-232C connection for the barcode scanner. This enables the PLC to receive product identification data at high baud rates (up to 115,200 bps) for sorting, tracking, and inventory management in real-time, within typical industrial operating temperatures.

RS-232Cserial communicationautomated sortingbarcode readingRFIDdata exchangematerial handling

3. Process Control System for SCADA Integration

A small-scale process control system utilizing a Panasonic FP-X PLC needs to send operational parameters and receive commands from a Supervisory Control and Data Acquisition (SCADA) system's RTU or a local human-machine interface (HMI) that supports RS-232C communication.

Problem Solved

The AFPX-COM1 acts as a crucial link, providing the FP-X PLC with the 1-channel RS-232C interface required to exchange data reliably with the SCADA RTU or HMI. This enables real-time monitoring and control of the process, leveraging the module's stable communication and robust design for industrial environments, powered by 24V DC from the PLC.

SCADAHMIprocess controlRTURS-232Cdata communicationindustrial automation
