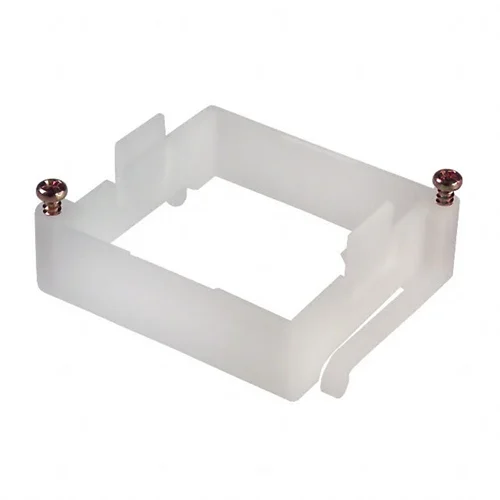

Omron Y92F-30 flush mounting adapter for compatible 48 × 48 mm panel timers and counters.
The Omron Y92F-30 is a flush mounting adapter accessory listed for Omron 48 × 48 mm timer and counter families. It secures a compatible panel instrument at a standard panel opening; panel thickness and installation arrangement should be checked against the product drawing. It has no electrical or timing function.
Flush mounting adapter for compatible Omron 48 × 48 mm panel instruments.
| Parameter | Value |
|---|---|
| Accessory type | Flush mounting adapter |
| Compatible products | Omron H3CR timers; compatibility is model-specific |
| Mounting | Panel / flush mount |
| Nominal instrument size | 48 × 48 mm family |
| Electrical ratings | Not applicable |
| Physical Weight (kg) | Not stated in the checked Omron source |
| Dimensions L x W x H (cm) | Refer to Omron mechanical drawing; installation dimensions depend on mounting arrangement |
Engineering suggestions require suitability checks for your installation.
Fit a compatible Omron timer through a control-panel opening.
Confirm the panel cutout and permitted panel thickness in the timer and adapter drawings before installation.
Replace a missing adapter on a compatible installed timer.
Match the adapter to the exact Omron timer family and panel arrangement.
