USD 25.30
M8 4-pin straight female sensor cable with a 5m PVC jacket and IP67 rating. Features a slim 4mm profile, 40 mΩ max contact resistance, and a broad -25°C to 70°C operating range.

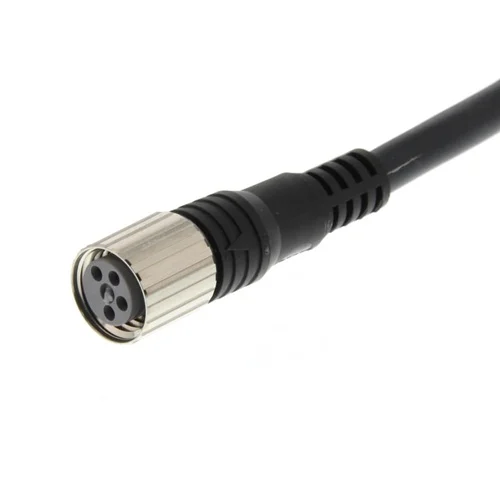

The Omron XS3F-M421-405-A is a 5-meter, standard round water-resistant sensor and actuator cable designed for robust industrial environments. It features a 4-pin M8 straight female receptacle connector on one end and bare flying leads (free end) on the other, ensuring seamless integration with field I/O blocks or direct PLC panels. Constructed with an unshielded PVC jacket and 4 inner cores, it has a slim 4 mm outer diameter. Rated at IP67 for superior dust-tight and waterproof protection, the cable operates safely in temperatures from -25°C to 70°C. It is highly compatible with Omron's E3X, E2E-X, E3Z, and E3NC smart laser, photoelectric, and proximity sensor series.
| Parameter | Value |
|---|---|
| Connector 1 | M8 Socket (Female), Straight, 4-Pin |
| Connector 2 | Free End / Flying Leads |
| Cable Length | 5 meters (16.4 ft) |
| Outer Diameter | 4 mm |
| Number of Wires | 4 cores |
| IP Rating | IP67 (Dust Tight, Waterproof) |
| Operating Temperature | -25 to 70 °C |
| Operating Humidity | 20 to 85 % |
| Insulation Resistance | 1000 MΩ min. (at 500 VDC) |
| Contact Resistance | 40 mΩ max. (20 mV max, 100 mA max) |
| Dielectric Strength | 1,000 VAC 1 min (Leakage current 1mA max) |
Used to connect M8-compatible photoelectric and fiber optic sensors (such as the Omron E3Z or E3X series) directly to the main control cabinet in a high-throughput packaging line.
Eliminates sensor downtime due to liquid ingress during periodic line washdowns, securely bridging the 5-meter gap to the PLC with an industrial-grade seal.
Integrates inductive proximity switches (e.g., E2E-X series) on CNC machine tool turrets to consistently verify tool positions and limits before cutting cycles begin.
Prevents electrical shorts and logic failures in the 24V sensing circuit when exposed to coolant splashing, maintaining high insulation resistance in harsh environments.
Serves as the main I/O signal carrier between lightweight smart laser sensors on a robotic arm end-effector and the fixed controller base.
Reduces added weight and cable drag on robotic movement due to its slim 4 mm profile, while the secure M8 threaded connection survives continuous high-speed vibrations without signal loss.
