Omron TL-W3MC2 2M: 3 mm ±10% NPN NC unshielded inductive sensor, 600 Hz min. response, 12–24 VDC nominal, 2 m cable, IP67.

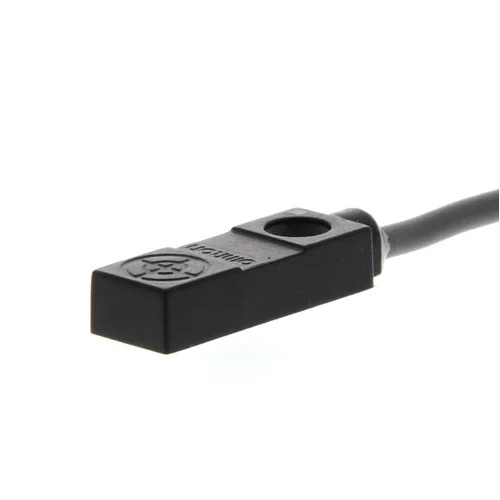

The Omron TL-W3MC2 2M is a unshielded flat inductive proximity sensor with NPN output and NC switching. It detects ferrous metal at 3 mm ±10% with a 600 Hz min. response and uses a 2 m pre-wired cable; supply is 12–24 VDC nominal. Its IP67 enclosure is oil-resistant to Omron's in-house standard, with the operating limit reduced to 40 °C for oil-required environments; current supply status is recorded as Unknown.
A NPN flat inductive proximity with a rated sensing range of 3 mm ±10%.
| Parameter | Value |
|---|---|
| Sensor type | Unshielded flat inductive proximity sensor |
| Sensing distance | 3 mm ±10% |
| Set distance | 0–2.4 mm |
| Differential travel | 1% to 15% of sensing distance |
| Detectable object | Ferrous metal; sensing distance decreases with non-ferrous targets |
| Standard sensing object | Iron, 12 × 12 × 1 mm |
| Response frequency | 600 Hz min. |
| Power supply | 12–24 VDC nominal (10–30 VDC operating); ripple 20% p-p max. |
| Current consumption | 10 mA max. at 24 VDC |
| Output | NPN open collector; NC operation; 100 mA max. at 30 VDC max.; 1 V max. |
| Indicators | Red detection indicator |
| Protection circuits | Reverse-polarity protection; surge suppressor |
| Ambient temperature | Operating/storage −25 to +70 °C; no icing or condensation; oil-resistant use: operating upper limit 40 °C |
| Ambient humidity | Operating/storage 35–95% RH; no condensation |
| Enclosure rating | IEC IP67; oil-resistant per Omron in-house standard |
| Connection | 2 m pre-wired cable |
| Housing material | Heat-resistant ABS |
| Weight packed | Approx. 70 g |
| Accessory | Instruction manual |
| Physical Weight (kg) | 0.070 |
| Dimensions L x W x H (cm) | See Omron dimension drawing; dimensions not transcribed numerically |
| Supply status | Unknown; current manufacturer supply state not established |
Engineering suggestions require suitability checks for your installation.
A machine fixture may need to confirm that a ferrous workpiece has reached a defined position.
Mount the unshielded sensor at or within its 0–2.4 mm set distance, then validate the actual target material, size and NC controller logic.
A compact automation station may need a rugged proximity signal for metal parts moving through an oily or washdown area.
Connect the 2 m cable to a compatible NPN input and observe the 100 mA max. at 30 VDC max. output rating and oil-service temperature limit.
