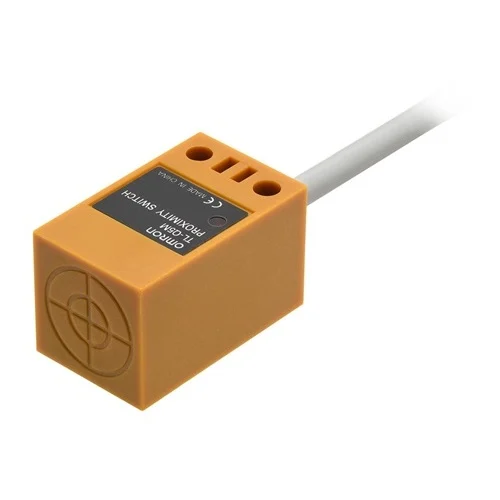

Omron TL-Q5MD2 2M rectangular inductive sensor with 5 mm sensing, DC 2-wire normally closed switching and a 2 m cable.
The Omron TL-Q5MD2 2M is an unshielded rectangular inductive proximity sensor with a 5 mm nominal sensing distance. Its DC two-wire output is normally closed, with a 12 to 24 VDC rated supply and a 2 m pre-wired cable. OMRON specifies IP67 protection, an operating range of -25 to 70 °C and a 3 to 100 mA load-current range; current supply status was not explicitly confirmed.
5 mm DC two-wire inductive sensor with normally closed switching and a 2 m cable.
| Parameter | Value |
|---|---|
| Sensing principle | Inductive proximity sensing |
| Sensor format | Unshielded rectangular body; 17 × 17 mm face |
| Sensing distance | 5 mm ±10% |
| Set distance | 0 to 4 mm |
| Detectable object | Ferrous metal |
| Standard sensing object | Iron, 18 × 18 × 1 mm |
| Response frequency | 500 Hz |
| Response time | Not separately specified; 500 Hz response frequency |
| Output | DC 2-wire; normally closed (D2) |
| Power supply | 12 to 24 VDC rated (10 to 30 VDC operating range), 10% max. ripple |
| Leakage current | 0.8 mA max. leakage current |
| Residual voltage | 3.3 V max. at 100 mA load and 2 m cable |
| Connection method | Pre-wired 2 m cable |
| Operating temperature | −25 to 70 °C; no icing or condensation |
| Storage temperature | −25 to 70 °C; no icing or condensation |
| Relative humidity | 35% to 95%, non-condensing |
| IP rating | IP67 (IEC 60529) |
| Housing material | IP67 (IEC 60529); OMRON in-house oil-resistant standard |
| Physical Weight (kg) | Approx. 0.085 kg, packed state |
| Dimensions L x W x H (cm) | 1.7 × 1.7 cm sensor face; overall dimensions shown in the official drawing |
Engineering suggestions require suitability checks for your installation.
A machine may need an input that changes state when a ferrous part leaves a monitored location.
Use the D2 normally closed switching mode in a compatible two-wire DC input circuit and check the specified load and leakage current.
A fixture may need a compact inductive device to monitor movement of a metal component.
Position a ferrous target within the 0 to 4 mm set distance and verify the input current range before commissioning.
