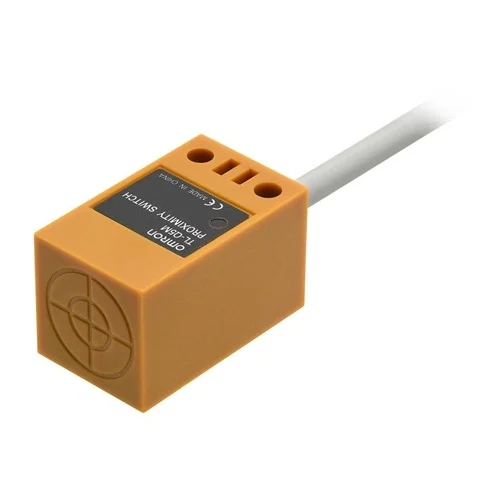

Omron TL-Q5MD1 2M rectangular inductive sensor with 5 mm sensing, DC 2-wire normally open switching and a 2 m cable.
The Omron TL-Q5MD1 2M is an unshielded rectangular inductive proximity sensor with a 5 mm nominal sensing distance. Its DC two-wire output is normally open, with a 12 to 24 VDC rated supply and a 2 m pre-wired cable. OMRON specifies IP67 protection, an operating range of -25 to 70 °C and a 3 to 100 mA load-current range; current supply status was not explicitly confirmed.
5 mm DC two-wire inductive sensor with normally open switching and a 2 m cable.
| Parameter | Value |
|---|---|
| Sensing principle | Inductive proximity sensing |
| Sensor format | Unshielded rectangular body; 17 × 17 mm face |
| Sensing distance | 5 mm ±10% |
| Set distance | 0 to 4 mm |
| Detectable object | Ferrous metal |
| Standard sensing object | Iron, 18 × 18 × 1 mm |
| Response frequency | 500 Hz |
| Response time | Not separately specified; 500 Hz response frequency |
| Output | DC 2-wire; normally open (D1) |
| Power supply | 12 to 24 VDC rated (10 to 30 VDC operating range), 10% max. ripple |
| Leakage current | 0.8 mA max. leakage current |
| Residual voltage | 3.3 V max. at 100 mA load and 2 m cable |
| Connection method | Pre-wired 2 m cable |
| Operating temperature | −25 to 70 °C; no icing or condensation |
| Storage temperature | −25 to 70 °C; no icing or condensation |
| Relative humidity | 35% to 95%, non-condensing |
| IP rating | IP67 (IEC 60529) |
| Housing material | IP67 (IEC 60529); OMRON in-house oil-resistant standard |
| Physical Weight (kg) | Approx. 0.085 kg, packed state |
| Dimensions L x W x H (cm) | 1.7 × 1.7 cm sensor face; overall dimensions shown in the official drawing |
Engineering suggestions require suitability checks for your installation.
A control system may need to detect a ferrous target without adding a separate three-wire sensor output.
The DC two-wire normally open output can be placed in a compatible series input circuit; verify load current and leakage requirements.
A compact station may count steel parts passing near a fixed sensing point.
Use the 500 Hz response capability within the manufacturer's specified target and mounting conditions and check the input circuit load.
