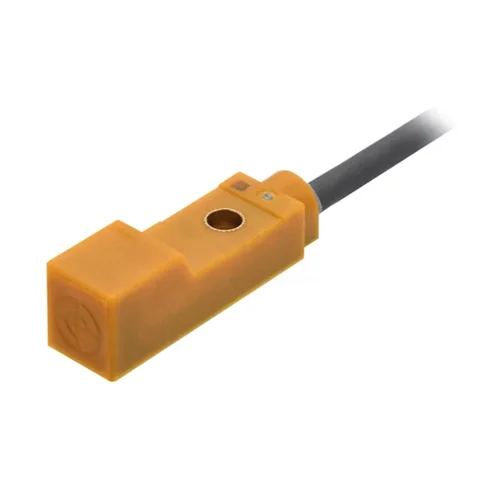

Omron TL-Q2MC1 2M rectangular inductive sensor with 2 mm sensing, NPN normally open output and a 2 m pre-wired cable.
The Omron TL-Q2MC1 2M is an unshielded rectangular inductive proximity sensor with a 2 mm nominal sensing distance. It uses a DC three-wire NPN open-collector output in normally open mode and connects through a 2 m pre-wired cable. OMRON specifies a 12 to 24 VDC rated supply, IP67 protection and an operating range of -10 to 60 °C.
Compact 2 mm inductive sensor with NPN normally open output and 2 m cable.
| Parameter | Value |
|---|---|
| Sensing principle | Inductive proximity sensing |
| Sensor format | Unshielded rectangular sensor head; 8 × 9 mm |
| Sensing distance | 2 mm ±15% |
| Set distance | 0 to 1.5 mm |
| Detectable object | Ferrous metal |
| Standard sensing object | Iron, 8 × 8 × 1 mm |
| Response frequency | 500 Hz |
| Response time | Not separately specified for this model |
| Output | DC 3-wire NPN open collector; 100 mA max. at 30 VDC max.; normally open |
| Power supply | 12 to 24 VDC rated (10 to 30 VDC operating range), 10% max. ripple |
| Current consumption | 15 mA max. at 24 VDC, no-load |
| Residual voltage | 1 V max. at 100 mA load and 2 m cable |
| Connection method | Pre-wired 2 m cable |
| Operating temperature | −10 to 60 °C; no icing or condensation |
| Storage temperature | −10 to 60 °C; no icing or condensation |
| Relative humidity | 35% to 95%, non-condensing |
| IP rating | IP67 (IEC 60529) |
| Housing material | IP67 (IEC 60529); OMRON in-house oil-resistant standard |
| Physical Weight (kg) | Approx. 0.060 kg, packed state |
| Dimensions L x W x H (cm) | 0.8 × 0.9 cm sensor head; overall dimensions shown in the official drawing |
Engineering suggestions require suitability checks for your installation.
A machine may need a close-range signal from a small ferrous component.
The 2 mm inductive range and 8 × 9 mm sensor head suit compact setups when the target size and mounting clearance meet OMRON detection conditions.
A fixture may need to sense a small steel tab at a defined stop position.
Use the NPN output with a compatible DC control input and keep the target gap within the 0 to 1.5 mm set distance.
