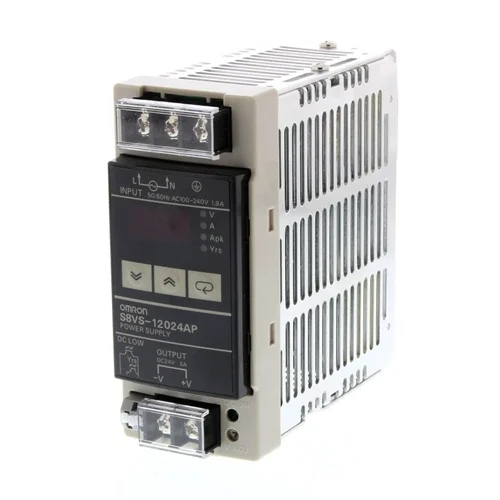

Name: Omron S8VS-12024AP Switch Mode DIN Rail Power Supply 24VDC 120W - INOSAKI
SKU: Omron-S8VS-12024AP
Price: 207.03 USD
Availability: InStock

Technical Overview

The Omron S8VS-12024AP is a high-performance 120W DIN-rail mount switch-mode power supply engineered for mission-critical industrial control panels. It operates on a wide input range of 100-240 VAC (or 80-370 VDC) and delivers a precisely regulated 24 VDC output at 5A. The defining feature of this "A" type model is its integrated 3-digit, 7-segment LED smart display, which provides real-time visualization of output voltage, output current, peak hold current, and a maintenance forecast monitor (operational years). This intelligent power supply includes a sourcing (PNP) alarm output to automatically signal preventive maintenance systems before the end of the product's life. Compliant with SEMI F47-0706 for voltage sag immunity, it is heavily utilized in semiconductor manufacturing and advanced automation architectures.

Key Features

Integrated 3-digit, 7-segment LED display for real-time voltage and current diagnostics
Maintenance forecast monitor calculates and displays remaining equipment lifetime
Built-in sourcing (PNP) alarm output for automated predictive maintenance alerts
Broad input voltage range accepting 100-240 VAC and 80-370 VDC
Overload protection (105% to 160% of rated load) with automatic reset
SEMI F47-0706 compliance (at 200 VAC input) for robust voltage sag immunity
Compact DIN-rail mountable design with standard screw terminals

Technical Specification Matrix

Parameter	Value
Output Power	120 W
Output Voltage	24 VDC
Output Current	5 A
Rated Input Voltage (AC)	100 to 240 VAC (85 to 264 VAC allowable)
Rated Input Voltage (DC)	80 to 370 VDC allowable
Alarm Output Type	Sourcing (PNP)
Display Type	3-digit, 7-segment LED
Efficiency	83% typ. (100 VAC) / 85% typ. (200 VAC)
Mounting Type	DIN Rail
Terminal Type	Screw Terminals
Operating Temperature	-10°C to +60°C
Dimensions (H x W x D)	115 mm x 50 mm x 121.3 mm

Industrial Applications

1. Predictive Maintenance in Automotive Assembly Lines

In high-throughput automotive assembly, unexpected power failures in PLCs or HMIs can cause costly production halts. The S8VS-12024AP actively tracks its own operational life and triggers a sourcing PNP alarm before electrolytic capacitor degradation leads to a voltage drop.

Problem Solved

Eliminates unplanned downtime by actively notifying the central control system months in advance when the power supply needs replacement.

Predictive maintenanceSourcing alarm outputPNP transistorMaintenance forecast monitor24VDC control

2. Semiconductor Manufacturing Equipment Power Control

Semiconductor fabrication environments require highly stable logic power capable of riding through minor factory grid fluctuations. This unit provides an isolated 24V/5A logic supply and explicitly conforms to SEMI F47-0706 standards for voltage sag immunity.

Problem Solved

Prevents catastrophic wafer loss due to logic controller resets during transient voltage dips, while ensuring stable power delivery.

SEMI F47-0706Voltage sag immunityPeak hold current120W power supplyLogic power

3. Industrial Control Panel Diagnostics in Remote Pumping Stations

Remote water or wastewater pumping stations lack constant supervision and can experience massive grid voltage variations. The power supply handles fluctuating inputs (80-370 VDC) seamlessly and features a built-in diagnostic display for visiting technicians.

Problem Solved

Simplifies field troubleshooting by giving maintenance crews immediate, visual, multi-parameter feedback (voltage, current load, peak current) without requiring external multimeters.

Universal input 100-240 VAC80-370 VDC7-segment LED displayCurrent diagnostic displayDIN rail mounting
