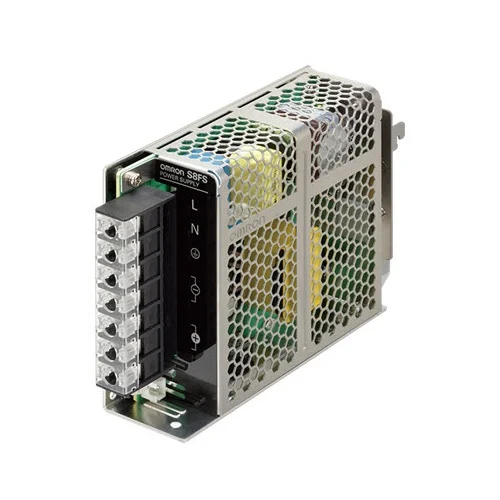

Name: Omron S8FS-G15024CD Switch Mode Power Supply 150W 24VDC - INOSAKI
SKU: Omron-S8FS-G15024CD
Price: 100.76 USD
Availability: InStock

Technical Overview

The Omron S8FS-G15024CD is a highly reliable 150W switch-mode power supply engineered for machine tools, semiconductor manufacturing, and severe industrial automation environments. It delivers a highly stable 24VDC output at 6.5A with an exceptional efficiency rating of up to 90%. Housed in a robust metal enclosure, this covered-type unit guarantees superior performance in extreme conditions, supporting ambient operating temperatures from -20°C up to 70°C and altitudes up to 3,000 meters. Furthermore, the S8FS-G15024CD features built-in overload and overvoltage protection, convenient DIN-rail mounting, a terminal cover designed to prevent screw drop-out and foreign matter ingress, and an integrated IEC 61558-2-16 compliant transformer to eliminate the need for an external control circuit transformer.

Key Features

150W power output delivering a steady 24VDC at 6.5A.
Wide input voltage compatibility: 85-264 VAC or 80-370 VDC.
High operational efficiency up to 90% (at 230 VAC input).
Extreme environment readiness: operates between -20°C and +70°C.
High-altitude application support up to 3,000 meters.
Covered DIN-rail mount design with front-facing screw terminal blocks.
Built-in IEC 61558-2-16 compliant transformer to eliminate compound winding needs.
Terminal block cover explicitly prevents screw drop-out and foreign matter ingress.
Comprehensive built-in overload and overvoltage protection functions.

Technical Specification Matrix

Parameter	Value
Power Rating	150 W
Output Voltage	24 VDC
Rated Output Current	6.5 A
Input Voltage Range (AC)	85 to 264 VAC (100-240 VAC nominal)
Input Voltage Range (DC)	80 to 370 VDC
Efficiency	90% typ. (at 230 VAC input)
Operating Temperature	-20°C to +70°C
Ripple Voltage	110 mV(p-p) max.
Maximum Altitude	3,000 m
Mounting Method	DIN Rail
Terminal Type	Screw terminal
Weight	Approx. 500 g

Industrial Applications

1. Semiconductor Manufacturing Equipment

Providing clean, highly stable 24VDC power to precision logic sensors, PLCs, and micro-actuators within semiconductor fabrication machinery.

Problem Solved

Semiconductor fabrication requires pristine electrical power to avoid logic errors or micro-sensor misreadings. The ultra-low ripple voltage (110 mV p-p) and high efficiency prevent electrical noise and heat buildup in densely packed, sensitive control panels.

24VDC 6.5A110 mV(p-p) rippleLow Leakage CurrentHigh Efficiency

2. Harsh Environment Machine Tool Control Panels

Powering essential components like CNC interfaces, robotic arms, and heavy-duty motor controllers in highly contaminated industrial environments.

Problem Solved

Machine tools constantly face vibrations, metal dust, and fluctuating grid voltages. The covered design and terminal block shield prevent foreign matter ingress, while the wide 85-264VAC input range and -20°C to 70°C rating guarantee fault-free operation despite intense environmental stressors.

-20°C to +70°C OperationForeign Matter Protection85 to 264 VAC Input RangeScrew Terminal Shield

3. High-Altitude Renewable Energy Control Systems

Delivering crucial auxiliary power and logic control voltage inside wind turbine nacelles or remote solar substations located at elevated geographical altitudes.

Problem Solved

Standard power supplies risk dielectric breakdown and thermal runaway at high altitudes due to thinner air. This Omron unit is specifically rated for operation up to 3,000 meters and features a built-in IEC 61558-2-16 transformer, ensuring compliance and superior reliability for isolated aerial installations.

3,000m Altitude RatingDIN Rail MountIEC 61558-2-16 CompliantRemote Control Power
