Name: Omron R88M-1M10030T-S2 100W 230VAC 1S Series AC Servo Motor - INOSAKI
SKU: Omron-R88M-1M10030T-S2
Price: 253.05 USD
Availability: InStock

Technical Overview

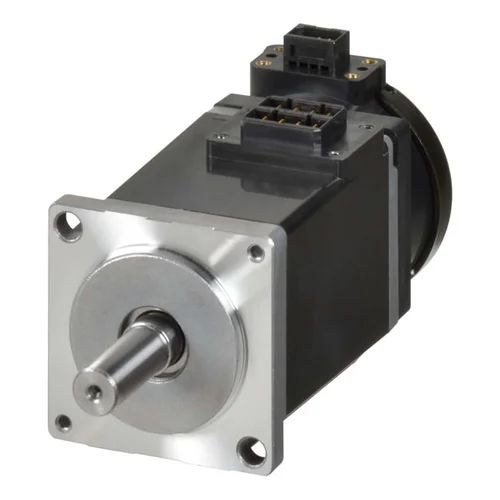

The Omron R88M-1M10030T-S2 is a highly compact, 100W AC servomotor from the Sysmac 1S series, engineered for high-precision motion control in automated industrial systems. Operating efficiently on a 230V single-phase supply, it delivers a rated speed of 3000 RPM and a rated continuous torque of 0.318 Nm. The robust construction features a cutting-edge 23-bit absolute multi-turn encoder that completely eliminates the need for battery maintenance while providing exceptional feedback accuracy. Designed with a 40mm square flange and an 8mm keyed shaft, this middle-inertia motor integrates seamlessly into EtherCAT-based servo environments when paired with matching 1S-series drives.

Key Features

Operates at 100 W (0.1 kW) with a 230 VAC single-phase input voltage rating.
Delivers a rated rotational speed of 3000 RPM (up to 6000 RPM maximum) and a peak torque of 1.11 Nm.
Built-in 23-bit resolution absolute encoder provides highly responsive precision feedback.
Battery-free multi-turn encoder design (16-bit, 65536 turns) drastically reduces long-term machine maintenance.
Middle-inertia rotor is specifically calibrated for highly responsive industrial motion control.
Pre-assembled motor cables are designed to simplify EMC compliance.
Ultra-compact 40mm flange size and lightweight 520g profile are ideal for space-constrained machine installations.
Standard 8mm diameter shaft includes a factory-machined key and tap.

Technical Specification Matrix

Parameter	Value
Supply Voltage	230 VAC Single Phase (200-240V)
Rated Output Power	100 W (0.1 kW)
Rated Speed	3000 RPM
Max Speed	6000 RPM
Rated Torque	0.318 Nm
Peak Torque	1.11 Nm
Encoder Type	23-Bit Absolute (Battery-free multi-turn)
Motor Inertia	Middle-inertia (0.0890 x 10^-4 kg·m²)
Flange Size	40 mm square
Shaft Diameter	8 mm
Shaft Features	With key and tap
Brake	None
Product Weight	520 g

Industrial Applications

1. Automated Packaging Lines

Utilized in high-speed form, fill, and seal (FFS) packaging machinery to dictate film feed and cutting mechanisms.

Problem Solved

Provides the required highly responsive speed (3000 RPM) and continuous torque (0.318 Nm) necessary to maintain precise sealing operations and reduce cycle times. The battery-free absolute encoder retains positional data during unexpected power cycles, eliminating homing routines on restart.

3000 RPM0.318 Nm TorqueAbsolute EncoderEtherCAT Synchronization

2. Electronics Assembly Pick-and-Place Gantry

Serves as the precise actuation mechanism in XYZ gantry systems for electronic surface-mount technology (SMT) or printed circuit board handling.

Problem Solved

Solves space constraints with its extremely compact 40mm frame and low 520g weight while the 23-bit encoder allows sub-millimeter component placement accuracy. The middle-inertia design ensures fast settling times during rapid start/stop motions.

23-Bit Resolution40mm Flange SizeMiddle-inertia100W Output

3. Material Handling and Sorting Conveyors

Drives automated sorting diverters and smart conveyor nodes in distribution centers and logistics hubs.

Problem Solved

Seamlessly meshes with R88D-1SN01H-ECT EtherCAT drives for multi-axis synchronized sortation. Its robust 1.11 Nm peak torque effortlessly handles dynamic load shifts, while battery-less multi-turn tracking slashes facility maintenance overhead.

EtherCAT Networked1.11 Nm Peak TorqueBattery-free Multi-turn230 VAC
