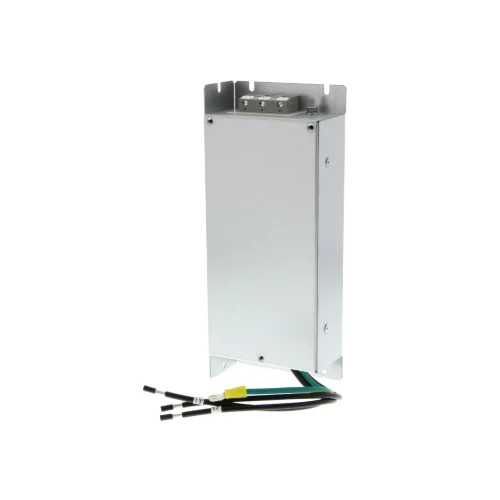

Name: Omron R88A-FI1S309-SE 1S Series 9A 400V 3-Phase Servo RFI Filter - INOSAKI
SKU: Omron-R88A-FI1S309-SE
Price: 94.32 USD
Availability: InStock

Technical Overview

The Omron R88A-FI1S309-SE is a high-performance 3-phase Radio Frequency Interference (RFI) power line filter designed specifically for the Omron 1S Series servo drives. Operating with a maximum current rating of 9A at 400V AC, this robust noise filter actively mitigates conducted electromagnetic interference (EMI) in harsh industrial settings. It is engineered to support 400V servo models ranging from 600W to 3kW. With a compact footprint of 220 x 90 x 45 mm, it allows for streamlined integration into high-density control panels. Furthermore, a remarkably low leakage current of 1.2mA ensures operational safety and strong compliance with demanding EMC regulations.

Key Features

Effectively suppresses electromagnetic interference (RFI/EMI) in high-speed servo operations.
Specifically engineered for Omron 1S Series servo drives (400V, 600W to 3kW capacity).
Continuous power handling with a 9A maximum current rating.
Designed for 3-phase, 400V AC industrial power applications.
Meets strict electrical safety standards with a low 1.2mA leakage current.
Compact dimensions (220 x 90 x 45 mm) for efficient control cabinet spatial utilization.

Technical Specification Matrix

Parameter	Value
Product Type	Servo RFI (Radio Frequency Interference) Filter
Voltage Rating	400 V AC
Current Rating	9 A
Power Phase	3-Phase
Leakage Current	1.2 mA
Dimensions (L x W x H)	220 mm x 90 mm x 45 mm
Drive Compatibility	Omron 1S Series (400 VAC, 600 W to 3 kW)

Industrial Applications

1. CNC Machine Tool Precision Filtering

CNC machine tools relying on 400V servo motors between 600W and 3kW can suffer from high-frequency electromagnetic noise, potentially causing erratic axis positioning. Utilizing the R88A-FI1S309-SE RFI filter on the 3-phase power line suppresses this interference, stabilizing the control signal for precision multi-axis movements.

Problem Solved

Eliminates conducted EMI/RFI noise from the main power feed that could corrupt servo positioning loops and lead to machining deviations.

RFI mitigation400V ACServo positioning3-phase power lineEMI noise suppression

2. Automated Packaging Line Synchronization

High-speed automated packaging machinery features multiple variable frequency drives and servo systems running concurrently, injecting significant harmonic transients into the power grid. Rated for 9A, this Omron RFI filter reliably handles the continuous load of 1S series servo modules up to 3kW while smoothing out transient disruptions.

Problem Solved

Prevents power line harmonic distortion and switching transients from interfering with high-speed indexing and electronic camming synchronization.

Harmonic transients9A continuous currentVariable frequency drive noiseElectronic cammingInverter applications

3. Robotic Workcell Noise Isolation

Industrial robotic enclosures densely pack servo controllers that can exhibit severe intra-cabinet crosstalk. Measuring just 220x90x45mm, this Omron filter minimizes spatial impact while delivering vital EMC isolation. Its 1.2mA low leakage current safely isolates adjacent 400V drives without triggering sensitive ground-fault detection mechanisms.

Problem Solved

Solves destructive electromagnetic crosstalk inside dense control panels while maintaining strict factory leakage current compliance.

Intra-cabinet crosstalk1.2mA leakage currentEMC isolationGround-fault detectionCompact footprint
