1. Automated Assembly Line Conveyor Control

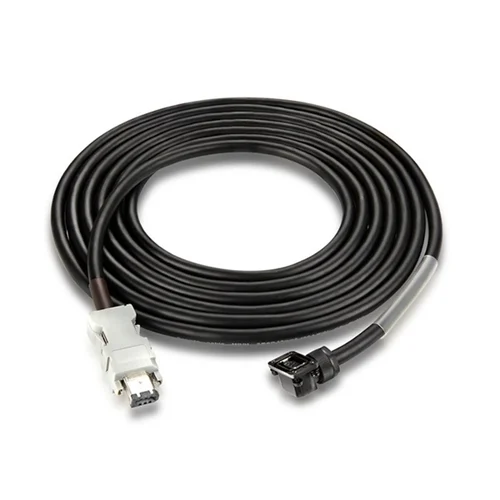

In a precision assembly line, multiple servo motors drive conveyor belts that transport electronic components. The R88A-CRKA003C cable connects the servo motor encoder to the drive, providing exact positioning data.
Problem SolvedThe 3m, non-flexible design is ideal for the static, fixed-axis nature of a conveyor system, ensuring consistent and interference-free signal transmission for high-accuracy component placement without signal degradation over the specified length.
servo motorencoder feedbackconveyor systempositioning controlstatic application
2. CNC Milling Machine Spindle Orientation
A CNC milling machine uses a servo motor to control the spindle's rotational position for tool changes and precise angular machining operations. The encoder cable is critical for relaying the exact angle of the spindle back to the CNC controller.
Problem SolvedThe robust, non-flexible construction of the R88A-CRKA003C protects the integrity of the encoder signal from the high-vibration environment of the machine frame, ensuring accurate tool positioning and preventing machining errors. Its compatibility with 750W motors is well-suited for medium-duty spindle applications.
CNC millingspindle controlservo feedbackhigh vibrationangular positioning
3. Pick-and-Place Gantry Robot
A gantry robot utilizes servo motors for X-Y-Z axis movement to pick up and place components. The R88A-CRKA003C would be used on the axes where the cable routing is fixed and not subject to continuous flexing.
Problem SolvedFor the stationary runs of the gantry's wiring, the non-flexible cable offers a cost-effective and reliable solution for transmitting encoder data. Its compatibility with the G5 series motors up to 750W allows it to be used on various axes of the robot depending on the load requirements, ensuring precise and repeatable movements.
gantry robotpick-and-placemulti-axis controlencoder signalfixed cable routing
