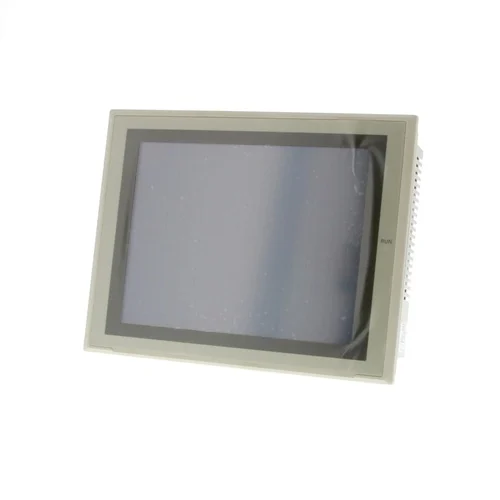

Name: Omron NS8-TV01-V2 8.4-Inch TFT Color Touch Screen HMI - INOSAKI
SKU: Omron-NS8-TV01-V2
Price: 1127.21 USD
Availability: InStock

Technical Overview

The Omron NS8-TV01-V2 is an 8.4-inch color TFT touchscreen Human Machine Interface (HMI) designed for reliable operator control and process visualization in industrial automation systems. It features a sharp 640x480 VGA resolution, built-in Ethernet, dual RS-232C ports, and an IP65-rated front panel for robust performance in demanding manufacturing environments.

Key Features

8.4-inch TFT Color Display supporting 256 colors (up to 32,768 colors for BMP/JPG files)
640 x 480 pixel (VGA) resolution for clear graphical interfaces
IP65 / NEMA 4 rated front panel, providing dust-tight and water-resistant protection
Built-in 10/100 Base-T Ethernet port for networked automation systems
Dual RS-232C ports and USB Host/Slave ports for flexible communication and programming
60 MB user memory capacity for storing complex screen data and graphics
Ladder Monitor function for direct PLC program monitoring and troubleshooting
Supports Smart Active Parts (SAP) and advanced data logging capabilities

Technical Specification Matrix

Parameter	Value
Display Size	8.4 inches
Display Type	TFT LCD with LED Backlight
Resolution	640 x 480 pixels (VGA)
Power Supply Voltage	24 VDC
Protection Class	IP65 (Front Panel)
Communication Ports	1x Ethernet (10/100 Base-T), 2x RS-232C, 1x USB Host, 1x USB Slave
Screen Memory Capacity	60 MB
Backlight Life	40,000 to 50,000 hours

Industrial Applications

1. Automated Packaging Line Control

Serves as the central control dashboard for high-speed packaging machinery, allowing operators to monitor throughput, adjust parameters, and view alarms.

Problem Solved

Operators need a clear, responsive interface to manage complex packaging sequences in environments prone to dust and washdowns. The NS8-TV01-V2 solves this with its IP65-rated front panel and fast Ethernet communication to the main PLC.

IP65 Front Panel10/100 Base-T EthernetHMI Touch Panel24 VDC

2. Legacy Machine Retrofitting and Data Logging

Provides a graphical interface for older or retrofitted manufacturing equipment, enabling operators to load part programs, monitor machine speeds, and log performance data.

Problem Solved

Legacy control panels lack visual clarity and memory for modern data logging. With 60MB of screen memory and RS-232C serial ports, this HMI easily retrofits into existing architectures, bridging legacy serial PLCs with modern visual interfaces.

RS-232C Serial60 MB Screen MemoryData LoggingTFT LCD

3. Water Treatment Process Visualization

Deployed in localized control panels within water and wastewater treatment facilities to monitor pump statuses, tank levels, and flow rates in real-time.

Problem Solved

Treatment facilities require robust, low-voltage HMI panels that can withstand humid environments and interface with various control protocols. The 24 VDC power supply, IP65 rating, and Ladder Monitor function ensure reliable visualization and direct PLC diagnostics.

24 VDCLadder Monitor FunctionEthernet/IP640x480 Resolution
