5.6-inch TFT color HMI with Ethernet, USB, and serial ports. Features a compact 46mm depth and IP65 protection, ideal for local pump monitoring and CNC machine tool retrofitting.

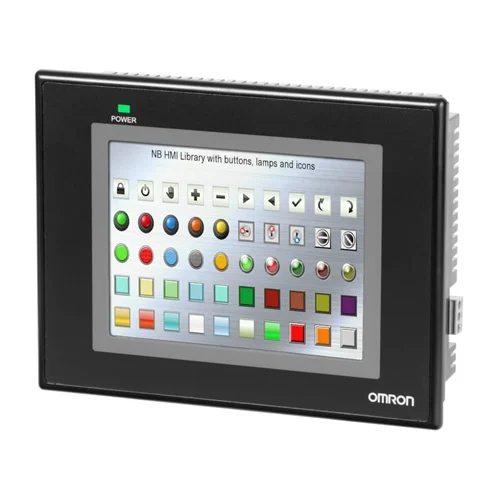

The Omron NB5Q-TW01B-V1 is an industrial-grade, compact 5.6-inch TFT color Touch Screen Human Machine Interface (HMI) designed for robust machine control and OEM automation. It features a QVGA (320 x 240) display capable of rendering over 65,000 colors, illuminated by a long-life 50,000-hour LED backlight. Engineered for flexible integration, it incorporates a versatile communication matrix with built-in Ethernet, USB Host, and multiple serial ports (RS-232, RS-422, RS-485) to interface seamlessly with PLCs such as the Omron CP1 series, as well as third-party devices via Modbus. Its durable design is rated IP65 on the front panel, providing excellent protection against dust and water ingress in demanding industrial environments.
| Parameter | Value |
|---|---|
| Screen Size | 5.6 inches |
| Resolution | 320 x 240 pixels (QVGA) |
| Display Type | TFT Color LCD |
| Supply Voltage | 24 VDC |
| Degree of Protection | IP65 (Front Panel) |
| Communication Ports | 1x Ethernet, 2x USB, 2x RS-232, 1x RS-422, 1x RS-485 |
| Dimensions (W x H x D) | 184 mm x 142 mm x 46 mm |
| Panel Cutout | 172.4 mm x 131 mm |
| Operating Temperature | 0 to 50°C |
| Weight | 660 g |
Utilized as the central operator control terminal on filling and sealing machinery, providing real-time recipe management and fault diagnostics.
Prevents dust and liquid splash damage during machine washdowns with its IP65-rated front panel, while seamlessly coordinating multiaxis Omron PLCs via standard Ethernet.
Deployed as a local interface in water treatment sub-stations to monitor pump status, tank levels, and valve configurations via clear P&ID visualizations.
Eliminates the need for external network converters by utilizing the onboard RS-485 and Ethernet ports to connect local sensors and uplink data to a central plant SCADA system.
Integrates into existing control cabinets of legacy manufacturing machines to provide operators with a modernized, touch-based command and read-out interface.
Solves space constraint issues through its ultra-compact 46mm built-in depth and versatile portrait/landscape mounting options, effortlessly communicating with legacy motor drives via RS-232/422.
