Name: Omron NB3Q-TW01B-V1 3.5-inch TFT Color Touchscreen HMI - INOSAKI
SKU: Omron-NB3Q-TW01B-V1
Price: 206.35 USD
Availability: InStock

Technical Overview

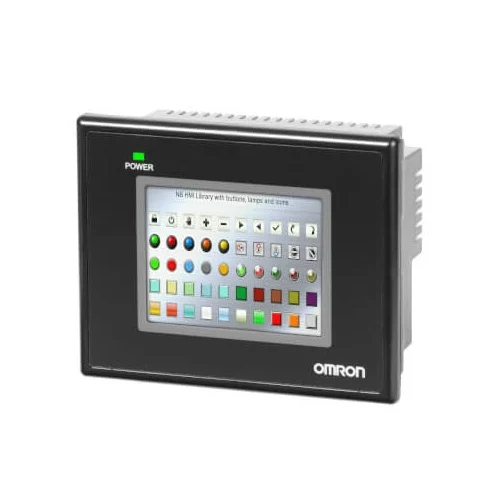

The Omron NB3Q-TW01B-V1 is a compact, feature-rich 3.5-inch Human Machine Interface (HMI) designed for industrial machine builders. It features a robust TFT color touch screen supporting 65,536 colors with a long-life LED backlight rated for 50,000 hours. Designed for maximum flexibility, it provides seamless connectivity through simultaneous Ethernet, USB, and serial ports, making it highly compatible with Omron CP1 family micro-PLCs and various non-Omron devices. Engineered for harsh environments, the unit is IP65 rated and can be mounted in both portrait and landscape orientations.

Key Features

3.5-inch TFT color touchscreen with 320 x 240 QVGA resolution [1.6]
Analog resistive touch panel rated for over 1 million touches
Simultaneous communication via Ethernet, USB host/slave, and RS-232C/422A/485 ports
IP65 rating for robust dust-tight and water-resistant protection in industrial applications
Supports both portrait and landscape mounting orientations
Integrated troubleshooting screens and offline simulation specifically for Omron CP1 PLCs
Extensive graphic library with vector graphics, animation, and recipe management controls

Technical Specification Matrix

Parameter	Value
Display Size	3.5 inch
Resolution	320 x 240 pixels (QVGA)
Display Type	TFT Color LCD
Display Colors	65,536 colors
Touch Panel Type	Analog Resistive
Backlight Life	Approx. 50,000 hours (LED)
Power Supply Voltage	24 VDC
Internal Memory	128 MB
Communication Ports	1 x Ethernet (RJ45), 1 x USB Host (USB-A), 1 x USB Slave (USB-B), 1 x RS-232C/422A/485 (DB9)
Degree of Protection	IP65
Operating Temperature	0°C to 50°C
Dimensions (W x H x D)	129.8 mm x 103.8 mm x 52.8 mm
Panel Cutout Dimensions	119 mm x 93 mm
Approximate Weight	320g

Industrial Applications

1. Compact Packaging Machine Interface

Integrates into space-constrained automated packaging machinery, allowing operators to monitor processes, adjust recipes, and clear faults via the 3.5-inch touchscreen. The Ethernet port provides seamless real-time data access to an Omron CP1 micro-PLC.

Problem Solved

Provides a robust, highly functional control surface in a compact 129.8x103.8mm footprint without sacrificing functional depth, solving space constraints in small OEM machines.

Micro-PLC IntegrationPackaging AutomationRecipe ManagementEthernet Control Loop

2. Washdown-Ready Production Line Monitor

Installed in manufacturing environments subject to moisture and dust. The analog resistive touchscreen allows flawless operation by workers wearing protective gloves, while the sealed front panel withstands mild cleaning.

Problem Solved

The front panel's IP65 rating effectively seals against dust ingress and low-pressure water jets, protecting control electronics in demanding shop-floor conditions.

IP65 EnclosureWashdown EnvironmentGloved OperationResistive Touch Panel

3. Local Control for Water Treatment Skids

Serves as a localized control and monitoring terminal for remote filtration skids, offering localized data logging via the USB Host port. Operators can download historical trends and system alarms directly to a USB flash drive.

Problem Solved

Addresses the lack of constant remote SCADA connectivity by providing localized historical data storage and retrieval capabilities right at the machine level via USB memory.

Data LoggingUSB Host IntegrationRemote Skid ControlHistorical Trend Plotting
