USD 517.90
10.1-inch WSVGA HMI with Ethernet, USB host/slave, RS-232C/422A/485, 24 VDC supply, IP65 front.

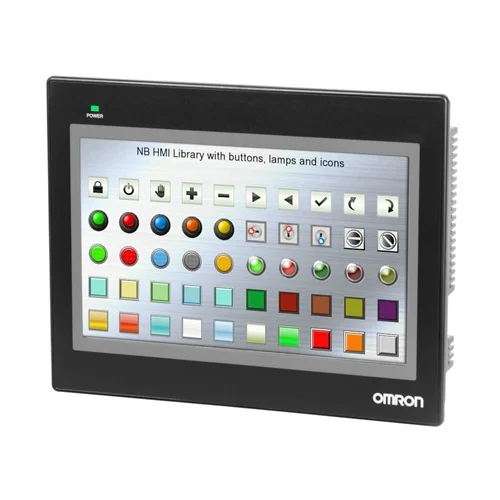

10.1-inch Omron NB Series programmable terminal with WSVGA TFT color display, Ethernet, USB host/slave, and serial communications. The exact NB10W-TW01B-V1 variant is a front-IP65 industrial HMI intended for machine control, status visualization, and operator input in compact automation systems.
| Parameter | Value |
|---|---|
| Display size | 10.1 inch TFT color LCD |
| Resolution | 1024 x 600 pixels |
| Line voltage | 20.4 to 27.6 VDC (24 VDC -15% to +15%) |
| Power consumption | 8 W |
| Front enclosure rating | IP65 (front operation part only) |
| Ambient operating temperature | 0 to 50 °C |
| Ambient operating humidity | 10% to 90% RH (without condensation) |
| Ethernet | 10/100 base-T |
| USB host | USB 2.0 full speed, type A, output power 5 V, 150 mA |
| USB slave | USB 2.0 full speed, type B |
| Serial communication | RS-232C; RS-422A/RS-485, one built-in port |
| Display backlight life | 50,000 hours at normal temperature (25 °C) |
| Touch panel | Analog resistive membrane type, resolution 1024 x 1024, life 1 million touch operations |
| Dimensions (H x W x D) | 210.8 x 268.8 x 54 mm |
| Weight | 1465 g max. |
| Applicable panel thickness | 1.6 to 4.8 mm |
| Panel cutout (H x W) | 258.0 (+0.5/-0) x 200.0 (+0.5/-0) mm |
Best suited for compact machine panels that need a 10.1-inch display, IP65 front protection, and 24 VDC operation for operator input and alarm display.
Provides a sealed, readable operator interface for dust- and splash-exposed factory equipment.
Works well as a local control terminal for PLC systems needing Ethernet plus RS-232C/422A/485 connectivity in one panel device.
Bridges legacy serial controllers and modern Ethernet-connected automation equipment.
Appropriate for upgrading older machines to a color touchscreen HMI without changing the 24 VDC machine power architecture.
Replaces obsolete monochrome or pushbutton interfaces with a modern touch display and web-enabled terminal functions.
