Multi-functional digital timer (100-240 VAC). Specs: 11-pin socket/flush mount, 0.001s precision, SPDT 5A contact, NPN/PNP switchable inputs, and NEMA 4X/IP66 washdown rating.

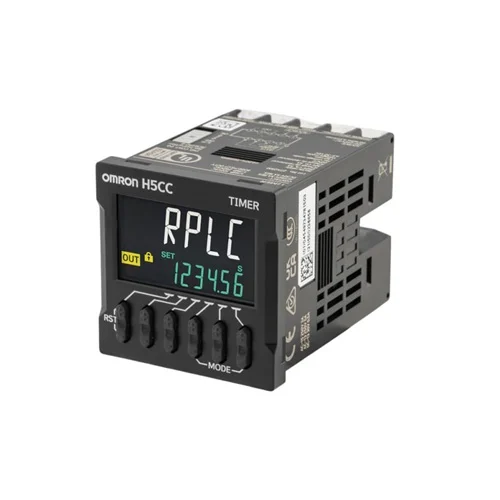

The Omron H5CC-A is a 1/16 DIN (48x48 mm) multifunctional digital timer designed for industrial automation. It features a high-visibility 6-digit white LCD display, 10 selectable time ranges from 0.001 seconds to 999,999 hours, and multiple operating modes including Signal ON/OFF Delay and Interval. It is equipped with a time-limit SPDT contact output and accepts both No-Voltage (NPN) and Voltage (PNP) inputs. The front panel achieves an IP66 rating when used with the appropriate waterproof packing, ensuring reliability in harsh environments. Furthermore, it includes a replacement time notification function to assist with predictive maintenance.
| Parameter | Value |
|---|---|
| Input Voltage | 100 to 240 VAC (50/60 Hz) [2.3] |
| Operating Voltage Range | 85% to 110% of rated voltage |
| Power Consumption | Approx. 6.5 VA |
| Dimensions | 48 x 48 x 59 mm (1/16 DIN) |
| Output Type | Contact Output (time-limit SPDT) |
| Display | 6-digit white LCD |
| Time Ranges | 0.001 s to 999999 h (10 ranges) |
| Degree of Protection | IP66 (front panel with packing), IP20 (terminals) |
| Mounting Method | Flush mounting (Panel mount) |
| Connection Type | Screw Terminals |
| Input Method | No-voltage (NPN) / Voltage (PNP) switchable |
Controls the exact operating intervals and staggered start sequences for industrial water pumps to manage system flow and prevent pipe hammering.
Prevents erratic flow and mechanical stress on piping systems by ensuring accurate, timed intervals for pump activation and deactivation.
Monitors the duration products take to pass between sensors, halting the conveyor if a jam or backup exceeds the predetermined threshold.
Eliminates product pile-ups and potential machinery damage by quickly halting the line when an object fails to clear a sensor within the exact set time.
Manages the precise heating durations for composite curing or UV-coating stations, utilizing delayed starts and exact cycle timing.
Prevents under-curing or thermal damage to sensitive components by delivering highly accurate automated timing sequences completely isolated from electrical noise.
