Name: Omron G6D-F4PU DC24 Push-In Terminal Power Relay - INOSAKI
SKU: Omron-G6D-F4PU DC24
Price: 54.29 USD
Availability: InStock

Technical Overview

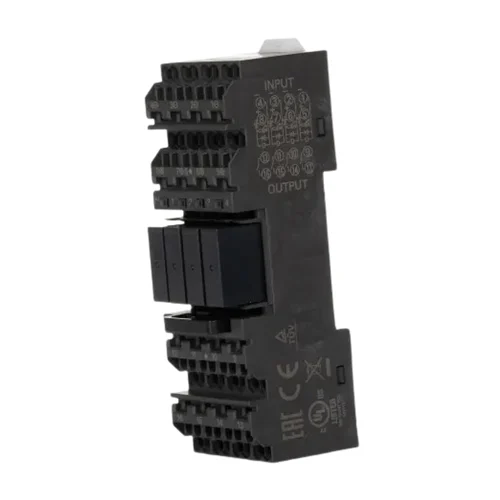

The Omron G6D-F4PU DC24 is a compact, four-point output terminal relay designed for high-density industrial control panels. Operating on a 24VDC coil with a 10.5mA current draw, it can reliably switch loads up to 5A at 250VAC or 30VDC. This device leverages Omron's advanced Push-In Plus terminal technology, significantly reducing wiring time and providing robust resistance to vibration without the need for routine retightening. Featuring independent coils and contacts (4 Form A), it is perfectly optimized for direct interfacing with PLC outputs. Built-in standard equipment includes an LED operation indicator for visual status monitoring and an integrated diode for coil surge absorption. The DIN rail mountable design ensures an extremely slim footprint, maximizing internal cabinet space and enhancing overall energy and material efficiency.

Key Features

4-point independent output lineup featuring SPST-NO (4 Form A) contact configuration
High switching capacity with a 5A load current rating per output at 250VAC or 30VDC
Push-In Plus technology for fast, tool-free wire insertion and enhanced reliability
Integrated LED operation indicator provides instant visual confirmation of relay status
Built-in diode for coil surge absorption protects upstream electronics
Fully independent coils and contacts designed for optimal PLC output compatibility
Space-saving DIN rail mount form factor for highly dense control cabinet layouts

Technical Specification Matrix

Parameter	Value
Coil Voltage	24 VDC
Coil Current	10.5 mA
Contact Configuration	4 Form A (SPST-NO x 4)
Max Switching Voltage	250 VAC / 30 VDC
Max Load Current	5 A per output
Operating Temperature	-25°C to +55°C
Mounting Type	DIN Rail
Terminal Type	Push-In Plus
Dimensions (H x W x D)	100 mm x 31 mm x 35 mm

Industrial Applications

1. High-Density PLC Interposing Network

Utilized as a protective interposing relay block between delicate Programmable Logic Controller (PLC) digital outputs and demanding field devices such as motorized valves or heavy-duty contactors.

Problem Solved

Provides essential galvanic isolation and inductive surge protection via its built-in diode, safeguarding expensive PLC transistor outputs from damage, while the 31mm width saves vital DIN rail space in densely packed cabinets.

Galvanic IsolationInterposing RelaySurge AbsorptionPLC Interface

2. Vibration-Resistant Actuator Control in Packaging Machining

Controls 24VDC pneumatic solenoid valves and diverter actuators in high-speed, continuous-motion automated packaging systems.

Problem Solved

High machine vibration often causes traditional screw-terminal relays to loosen, causing intermittent failures. The Push-In Plus technology guarantees consistent, vibration-proof contact retention, preventing machine downtime and eliminating retightening maintenance.

Vibration ResistanceActuator DrivingSolenoid ControlContinuous Automation

3. Multi-Zone Lighting and Heater Switching

Switches localized industrial heaters and facility lighting zones up to 5A/250VAC from a central building management system or PLC network.

Problem Solved

The 4 Form A independent contact design enables a single, compact module to switch up to four separate high-voltage heating or lighting loads efficiently without crosstalk, optimizing control cabinet footprint.

Zone SwitchingMulti-Pole RelayBuilding AutomationLoad Distribution
