35A three-phase SSR with 12-24 VDC input. Features a slim 80mm design, integrated heat sink, and zero-cross switching for reliable industrial heater and packaging machinery control.

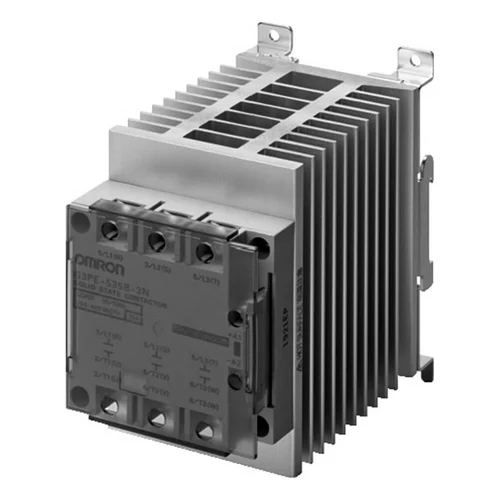

The Omron G3PE-535B-3N DC12-24 is a compact, three-phase solid-state relay (SSR) designed specifically for precise industrial heater control. It features an integrated heat sink within a slim 80mm profile and supports both DIN rail and screw mounting. Capable of switching heavy AC loads up to 35 A at 200 to 480 VAC, it is controlled via a standard 12 to 24 VDC input. The unit incorporates zero-cross switching to minimize electrical noise and includes an original surge-pass circuit that provides exceptional endurance against high-voltage surges.
| Parameter | Value |
|---|---|
| Input Voltage Range | 9.6 to 30 VDC |
| Nominal Input Voltage | 12 to 24 VDC |
| Load Voltage Range | 180 to 528 VAC |
| Nominal Load Voltage | 200 to 480 VAC |
| Maximum Load Current | 35 A |
| Number of Poles/Phases | 3 |
| Zero Cross Function | Yes |
| Operating Temperature Range | -30°C to +80°C |
| Dimensions (H x W x D) | 140 mm x 80 mm x 155 mm |
| Mounting Type | DIN Rail / Screw |
Regulating the multi-zone heating elements of large-scale industrial annealing or curing furnaces.
Traditional mechanical contactors fail frequently due to the high-frequency switching required for precise PID temperature regulation. This SSR handles rapid, repetitive cycling without mechanical wear.
Managing the barrel heater bands on high-throughput twin-screw plastic extrusion machines.
High inrush currents and continuous heavy loads can cause standard relays to overheat. The integrated heat sink and robust surge-pass circuit provide thermal stability and reliability.
Controlling the three-phase heating banks in automated heat shrink packaging tunnels.
High-volume packaging lines require compact electrical panels and noise-free operation to prevent interference with sensitive optical sensors. The slim footprint and zero-cross function resolve these constraints.
