Name: Omron G3PE-245B DC12-24V Solid State Relay - INOSAKI
SKU: Omron-G3PE-245B DC12-24V
Price: 78.11 USD
Availability: InStock

Technical Overview

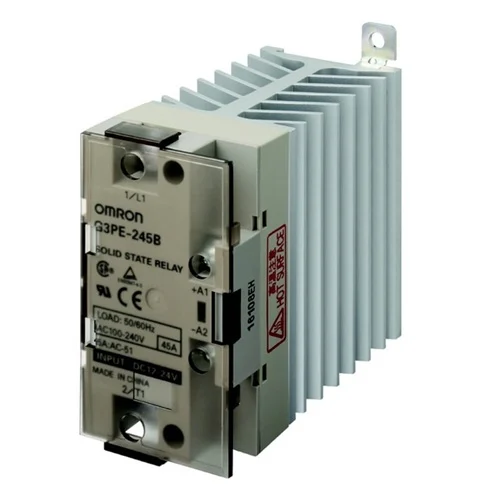

The Omron G3PE-245B DC12-24V is a compact, single-phase industrial solid-state relay (SSR) featuring an integrated heat sink. Designed for high-frequency switching applications such as heater control, it offers a reliable alternative to traditional mechanical relays. This model incorporates a zero-cross function for reduced noise and a phototriac coupler for insulation. It supports both DIN rail and screw mounting, providing installation flexibility. An LED indicator allows for easy operational status checks.

Key Features

Integrated heat sink for efficient thermal management
Zero-cross function to minimize switching noise
Mountable on both DIN rail and via screws
Equipped with an operation status indicator LED
Surge-pass circuit for outstanding surge endurance
Finger protection terminal cover for enhanced safety
Conforms to UL, CSA, and EN (TÜV certified) standards

Technical Specification Matrix

Parameter	Value
Load Voltage	100 to 240 VAC
Operating Load Voltage Range	75 to 264 VAC
Load Current	45 A
Input Voltage	12 to 24 VDC
Operating Voltage Range	9.6 to 30 VDC
Control Current	10 mA max
Output Type	AC, Zero Cross
Circuit	SPST-NO (1 Form A)
Isolation Method	Phototriac Coupler
Operate Time	1/2 of load power source cycle + 1 ms max.
Release Time	1/2 of load power source cycle + 1 ms max.
Output ON Voltage Drop	1.6 V (RMS) max.
Leakage Current	10 mA max. (at 200 VAC)
Mounting Type	DIN Rail, Screw Mount
Termination Style	Screw Terminal
Operating Temperature	-30°C to 80°C
Storage Temperature	-30°C to 100°C
Operating Humidity	45% to 85%

Industrial Applications

1. Industrial Furnace Temperature Control

Utilized within a PID temperature control loop for an industrial electric furnace. The SSR's 12-24VDC input is controlled by a PLC's analog output module, precisely modulating power to high-wattage heating elements.

Problem Solved

Mechanical contactors used for controlling high-current heating elements wear out quickly due to frequent arcing and mechanical fatigue. The G3PE-245B's solid-state design offers no-wear, high-frequency switching, leading to significantly longer operational life and more precise temperature regulation.

PID ControlHeating Element45A Load CurrentZero-Cross SwitchingIndustrial Oven

2. Thermoforming Machine Platen Control

Controls the multiple resistive heating elements embedded in the platens of a thermoforming machine. The SSR's high 45A current rating allows it to handle the significant power draw of the platens, while the zero-cross function minimizes electromagnetic interference that could affect sensitive machine controllers.

Problem Solved

The rapid and repeated heating cycles required in thermoforming cause premature failure in electromechanical relays. The G3PE-245B provides a durable, silent, and fast-switching solution that can withstand millions of cycles, ensuring consistent platen temperature and reducing machine downtime.

ThermoformingResistive Heater240VAC LoadHigh Cycle RateDIN Rail Mount

3. Commercial Bakery Proofer and Oven Power Regulation

Manages the power supplied to heating and humidity elements inside a commercial bakery proofer or convection oven. The 12-24VDC control signal allows for direct interface with modern digital bakery control systems for precise environmental management.

Problem Solved

Maintaining exact temperature and humidity is critical in baking. Traditional relays can cause temperature overshoots and undershoots due to slower switching speeds. The G3PE-245B's fast and precise switching capability, driven by a low-voltage DC signal, ensures stable temperatures, leading to consistent product quality and reduced energy waste.

Process HeatingSolid-State Relay12-24VDC Control45A CurrentFood and Beverage
