1. Plastic Injection Molding Heater Control

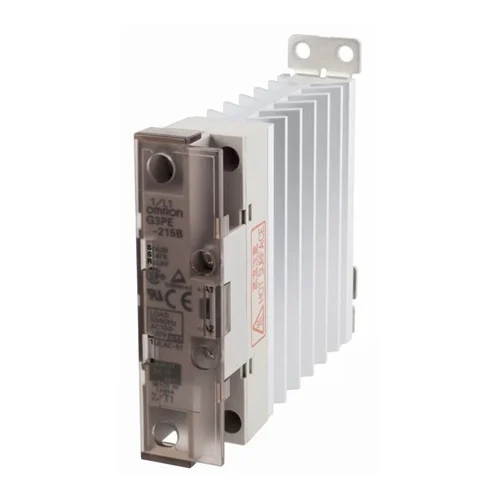

Precise temperature regulation in the barrel heating zones of plastic injection molding machines requires frequent switching of resistive loads. The G3PE-215B manages 15A up to 240VAC efficiently, utilizing its zero-cross switching to mitigate electrical noise that could disrupt sensitive thermocouple readings. Its compact 22.5mm width allows dense packing in control cabinets.
Problem SolvedEliminates mechanical relay wear from high-frequency thermal cycling and prevents high-frequency electromagnetic interference (EMI) during load switching.
Zero-cross switchingResistive loadThermocouple EMI reduction15A 240VACHigh-frequency thermal cycling
2. Industrial Packaging Shrink Tunnels
Shrink wrapping tunnels require continuous and responsive heat adjustments to maintain steady temperatures across the conveyor. The G3PE-215B easily controls up to a 3kW resistive heater capacity. The built-in heat sink guarantees reliable thermal dissipation during continuous operation without requiring external thermal compound or custom mounting plates.
Problem SolvedResolves overheating failures in solid-state switching by providing an integrated, factory-calibrated heat sink for uninterrupted 15A continuous load current.
Integrated heat sink3kW heater capacityContinuous thermal dissipationDIN rail mount
3. Commercial Food Processing Ovens
Baking and curing ovens in food manufacturing depend on precise ON/OFF PID control sequences. Operating on a standard 12-24 VDC control signal from the main PLC, this SSR quickly actuates the heating elements. Its wide operating temperature range (-30°C to 80°C) allows reliable operation within hot factory environments adjacent to the ovens.
Problem SolvedOvercomes the short operational lifespan of electromechanical relays in hot, high-cycle environments, extending maintenance intervals.
12-24 VDC PLC controlON/OFF PID controlPhototriac coupler insulation80°C ambient toleranceSolid-state reliability
