USD 2,758.92
2-camera vision system controller with Intel Celeron processor. Features AI inspection, EtherCAT support, and Windows 10 IoT for advanced automation control.

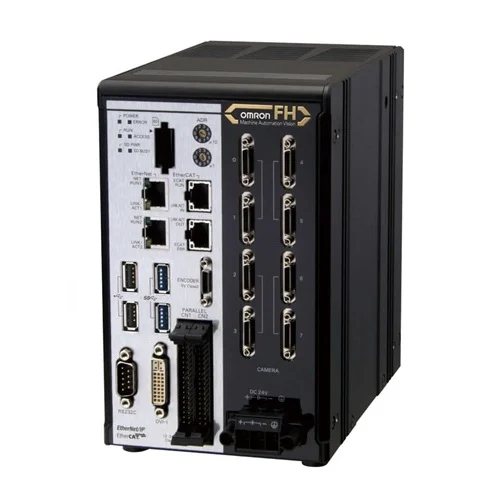

The Omron FH-2051 is a highly capable medium-speed industrial vision system controller designed for rigorous automation, defect inspection, and robot guidance applications. Powered by a robust 2-core Intel Celeron processor and running Windows 10 IoT Enterprise 2019 LTSC (64-bit), it seamlessly manages up to two high-resolution cameras simultaneously. Engineered to integrate flawlessly into advanced manufacturing environments, it supports prominent industrial network protocols such as EtherCAT Slave, PROFINET Slave, and Ethernet TCP/IP. Housed in a durable IP20-rated enclosure, the controller provides universal NPN/PNP I/O polarity, robust vibration and shock resistance, and features advanced machine vision algorithms including AI fine matching, OCR/OCV, and 2D robot guidance.
| Parameter | Value |
|---|---|
| Processor | Intel Celeron (2-core) |
| Memory | 8 GB RAM (non ECC), 64 GB ROM |
| Operating System | Windows 10 IoT Enterprise 2019 LTSC (64-bit) |
| Number of Supported Cameras | Up to 2 |
| Supply Voltage | 20.4 VDC to 26.4 VDC |
| Communication Ports | EtherCAT Slave, PROFINET Slave, Ethernet TCP/IP, Serial RS-232C, USB |
| I/O Type | NPN / PNP |
| Dimensions | 190 mm x 115 mm x 182.5 mm |
| Weight | Approx. 3.0 kg |
| Degree of Protection | IP20 (IEC60529) |
| Operating Temperature Range | 0°C to +45°C |
| Shock Resistance | 150 m/s2 (Up/Down, Front/Behind, Left/Right) |
Leveraging the vision system's dual-camera capacity to inspect packaging simultaneously from multiple angles on fast-moving bottling or cartoning lines [1.1].
Prevents defective or mislabelled packages from reaching consumers by rapidly running OCR/OCV algorithms to verify lot numbers and expiry dates.
Interfacing the FH-2051 controller with delta or SCARA robotics systems to pinpoint the coordinates and orientation of unorganized components on moving conveyor belts.
Eliminates the requirement for strict mechanical part fixturing by continuously calculating and transmitting real-time object coordinates with ultra-low latency.
Monitoring and evaluating continuous sealant or adhesive applications along critical automotive joints to confirm consistent width, trajectory, and structural continuity.
Avoids structural weaknesses and leaks caused by inconsistent dispensing, using advanced vision analysis to alert machine operators of deviations instantly.
