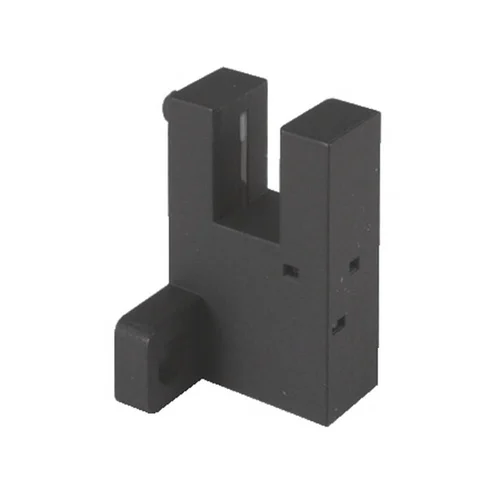

Omron EE-SX976P-C1: F-shaped through-beam photomicrosensor with 5 mm slot and PNP outputs. Supply status not established.
The Omron EE-SX976P-C1 is an EE-SX97 through-beam slot photomicrosensor in the f-shaped form. It has a 5 mm slot, 940 nm infrared LED and four-pole connector. This PNP model provides separate light-ON and dark-ON outputs; Omron specifies a 5–24 V DC supply, 21 mA maximum current and IP50 protection.
F-shaped through-beam photomicrosensor with 5 mm slot and PNP outputs.
| Parameter | Value |
|---|---|
| Sensing method | Through-beam slot-type photomicrosensor |
| Shape | F-shaped |
| Slot width | 5 mm |
| Minimum sensing object | Opaque object 2 × 0.8 mm min. |
| Light source | Infrared LED, 940 nm peak |
| Output | PNP; OUT1 Dark-ON, OUT2 Light-ON |
| Supply voltage | 5–24 V DC ±10% |
| Current consumption | 21 mA max. |
| Response frequency | 1 kHz min. (3 kHz average) |
| Connection | Built-in 4-pole connector |
| Operating temperature | −25 to 55 °C |
| Storage temperature | −30 to 80 °C |
| Protection | IP50 |
| Physical Weight (kg) | Approx. 0.003 kg (packed state) |
| Dimensions L x W x H (cm) | Refer to model-specific Omron F-shaped or R-shaped outline drawing |
Engineering suggestions require suitability checks for your installation.
Use the verified Omron product in a small-part position detection station.
Confirm the target, mounting, wiring, environmental conditions and controller interface against the machine design before commissioning.
Apply the Omron product to a compact mechanism state sensing task.
Validate operating margin on representative parts and follow the Omron installation and wiring documentation.
