5mm T-shaped slot sensor with 1kHz response, NPN output, and 1m robot cable. Reliable infrared detection for high-speed industrial automation.

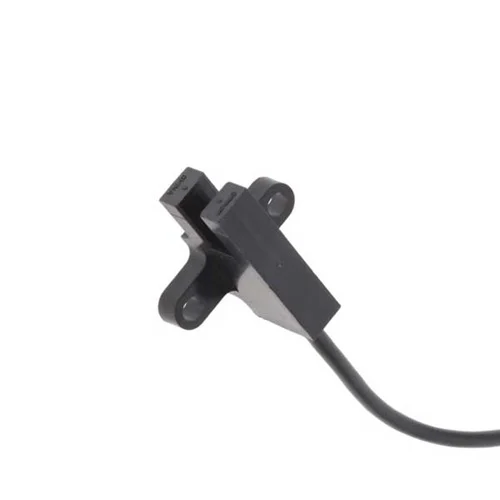

The Omron EE-SX675-WR 1M is a global standard, T-shaped slot-type photomicro sensor designed for high-speed industrial automation. Featuring a 5 mm sensing slot and a pre-wired 1-meter flexible robot cable, it utilizes a 940 nm infrared LED for highly reliable, non-contact, through-beam detection. The sensor boasts a rapid 1 kHz response frequency and offers an NPN open-collector output with a direct switching capacity of up to 100 mA. Housed in a durable IP50-rated thermoplastic P.B.T. casing, users can easily select between Dark-ON and Light-ON operating modes by configuring the wiring.
| Parameter | Value |
|---|---|
| Sensing Distance | 5 mm (Slot Width) |
| Operating Mode | Dark-ON / Light-ON (Selectable) |
| Output Configuration | 1 x Digital Output (NPN Open Collector) |
| Response Frequency | 1 kHz max. |
| Supply Voltage | 5 to 24 VDC ±10% |
| Current Consumption | 35 mA max. |
| Light Source | Infrared LED (940 nm) |
| Minimum Detectable Object | Opaque: 2 x 0.8 mm min. |
| Protection Rating | IP50 |
| Housing Material | Thermoplastic P.B.T. |
| Ambient Temperature Range | -25°C to +55°C |
| Dimensions | W 26 mm x H 22.2 mm x D 6.35 mm |
Mounted over a slotted indexing disc, the photomicro sensor reads the passing slots to determine the exact angular position on a fast-moving rotary table.
Eliminates physical wear and provides frictionless, high-accuracy position feedback for indexing machines, leveraging the 1 kHz response frequency to prevent missed counts at high speeds.
The T-shaped sensor acts as a robust, non-contact limit switch for linear stages and robot joints, utilizing a moving metal flag to break the 940 nm infrared beam.
Prevents mechanical over-travel and destructive collisions in automated XYZ gantries by instantly triggering a 100 mA direct switching signal when the actuator flag enters the gap.
Integrated into form-fill-seal machines to verify the alignment and presence of opaque packaging film passing through the 5 mm sensor slot.
Stops the web drive immediately if a film tear or misalignment is detected (opaque object 2 x 0.8 mm min.), reducing material waste and preventing jammed packaging lines.
