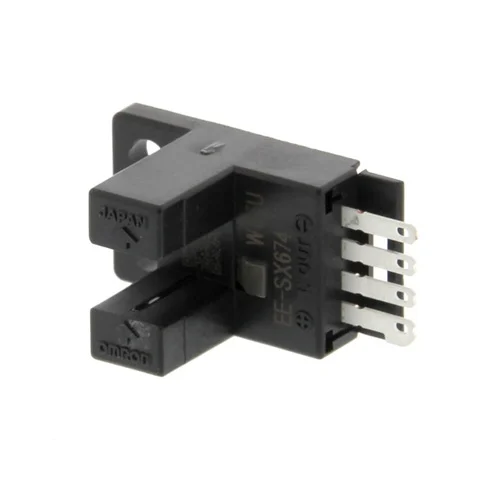

Omron EE-SX674P-WR 1M close-mounting slot photomicrosensor with PNP output, 5 mm slot and 1 m pre-wired cable.
The Omron EE-SX674P-WR 1M is a non-modulated through-beam photomicrosensor in a close-mounting slot package. It uses a 5 mm slot, a 940 nm infrared LED and a PNP open-collector output with selectable dark-on or light-on operation. The pre-wired model has a 1 m cable and an IP50 enclosure; its family operating frequency is at least 1 kHz.
Close-mounting slot through-beam photomicrosensor with PNP output and 1 m cable.
| Parameter | Value |
|---|---|
| Sensing principle | Through-beam slot-type photomicrosensor |
| Sensor format | Close-mounting slot |
| Sensing distance | 5 mm (slot width) |
| Minimum sensing object | Opaque object, 2 × 0.8 mm min. |
| Differential distance | 0.025 mm |
| Light source | Infrared LED, 940 nm peak wavelength |
| Output | PNP open collector; 5 to 24 VDC; 50 mA max.; 1.3 V max. at 50 mA load; 0.5 mA max. OFF-state leakage |
| Supply voltage | 5 to 24 VDC ±10%, 10% max. ripple |
| Current consumption | 12 mA max. |
| Response frequency | 1 kHz min. (3 kHz average) |
| Connection method | Pre-wired 1 m cable; four conductors |
| Operating temperature | −25 to +55 °C; no icing or condensation |
| Storage temperature | −30 to +80 °C; no icing or condensation |
| Relative humidity | Operating 5% to 85%; storage 5% to 95%, non-condensing |
| IP rating | IP50 (IEC 60529) |
| Housing material | PBT case; polycarbonate cover |
| Physical Weight (kg) | Approx. 0.0171 kg, pre-wired model |
| Dimensions L x W x H (cm) | Close-mounting slot; see the model-specific OMRON dimensional drawing for the body outline and 5 mm slot |
Engineering suggestions require suitability checks for your installation.
A feeder may need to detect a small opaque part passing through a narrow sensing slot.
The close-mounting slot through-beam arrangement can monitor interruption of the light path; confirm the part dimensions and mounting alignment.
A compact mechanism may need a discrete signal when a flag or vane crosses a fixed optical point.
Use the selectable dark-on or light-on configuration with the compatible PNP input and keep the application within the rated response and environmental limits.
