Omron EE-SX670A is a standard 5 mm slot NPN photomicrosensor with 940 nm infrared source and a red indicator that lights when the beam is interrupted.

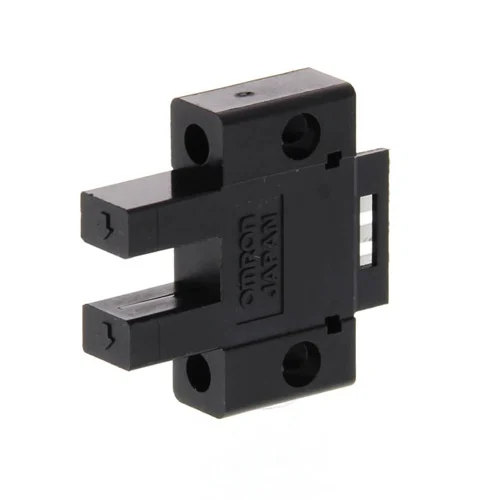

The Omron EE-SX670A is the standard connector version of the EE-SX47/67 slot photomicrosensor, with an operation indicator that lights when the beam is interrupted. It uses a 940 nm infrared LED across a 5 mm slot and has selectable Light-ON/Dark-ON NPN output from 5–24 VDC. Omron specifies IP50 and a minimum 1 kHz response frequency; current supply status is recorded as Unknown.
A 5 mm slot NPN photomicrosensor with interrupted-beam indicator and selectable output logic.
| Parameter | Value |
|---|---|
| Sensor type | Slot-type photomicrosensor, non-modulated |
| Model shape | Standard slot, connector model |
| Sensing distance | 5 mm (slot width) |
| Sensing object | Opaque object, 2 × 0.8 mm minimum |
| Differential distance | Red indicator lights when light is interrupted (A-suffix model) |
| Light source | Infrared LED, peak wavelength 940 nm |
| Output | NPN open collector; Light-ON/Dark-ON selectable |
| Supply voltage | 5–24 VDC ±10%; ripple 10% max. |
| Current consumption | 12 mA max. |
| Response frequency | 1 kHz min. (3 kHz average) |
| Ambient temperature | Operating −25 to +55 °C; storage −30 to +80 °C, no icing or condensation |
| Ambient humidity | Operating 5–85% RH; storage 5–95% RH, no condensation |
| Protection | IP50 (IEC60529) |
| Connection | Four-pole connector model; direct soldering possible |
| Weight | Approx. 3.1 g, connector model |
| Physical Weight (kg) | Approx. 0.0031 kg |
| Dimensions L x W x H (cm) | 26.2 × 6.35 × 25.4 mm (manufacturer dimensional drawing) |
| Supply status | Unknown; current manufacturer lifecycle state not established |
Engineering suggestions require suitability checks for your installation.
A small opaque component can be checked as it passes through a fixed sensing gap.
The 5 mm slot and 2 × 0.8 mm minimum opaque target specification support evaluation for non-contact passage detection.
A moving tab or flag may interrupt an optical path to indicate a machine state.
Selectable Light-ON/Dark-ON NPN output can be wired to compatible logic after checking geometry, speed and switching margin.
