Omron EE-SPX613: NPN pipe-mounting liquid-level photomicrosensor; Selectable Light-ON/Dark-ON; IP50.

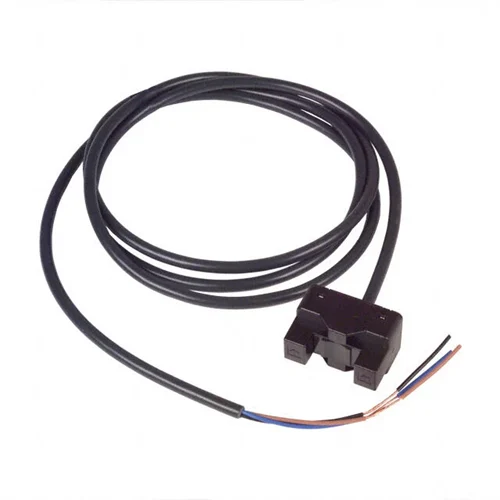

The Omron EE-SPX613 is a pipe-mounted liquid-level photomicrosensor for compatible transparent tubing. It detects liquid through 6–13 mm diameter pipe with a 1 mm wall and provides an NPN output with selectable Light-ON or Dark-ON operation. It operates from 12–24 VDC and is rated IP50; current supply status is recorded as Unknown.
A NPN pipe-mounting liquid-level photomicrosensor with a rated sensing range of For liquid presence in compatible 6–13 mm transparent pipe with 1 mm wall.
| Parameter | Value |
|---|---|
| Sensing method | Pipe-mounted liquid-level through-beam photomicrosensor |
| Applicable pipe | 6–13 mm diameter, 1 mm wall; FEP or material as transparent as FEP |
| Sensing object | Liquids in pipe; high-viscosity liquids or liquids with floating materials may not be detected |
| Light source | GaAs infrared LED, 940 nm |
| Power supply | 12–24 VDC ±10%; 5% p-p ripple maximum |
| Current consumption | 30 mA average max.; 80 mA peak max. |
| Output | NPN open collector; 5–24 VDC load; 100 mA max.; 0.5 mA max. OFF current |
| Residual voltage | 0.8 V max. at 100 mA; 0.4 V max. at 40 mA |
| Ambient illumination | 3,000 lx max. on receiver surface |
| Ambient temperature | Operating −10 to +55 °C; storage −25 to +65 °C |
| Ambient humidity | Operating 5–85% RH; storage 5–95% RH |
| Enclosure rating | IP50 |
| Housing material | Polycarbonate |
| Connection | 1 m pre-wired cable |
| Accessories | Support belts and slip-protection tubes |
| Physical Weight (kg) | Approx. 0.055 kg packed |
| Dimensions L x W x H (cm) | See Omron dimension drawing; dimensions not transcribed numerically |
| Supply status | Unknown; current manufacturer supply state not established |
Engineering suggestions require suitability checks for your installation.
A clear process tube can be monitored for liquid presence without an immersed sensing element.
Mount the sensor on a compatible transparent tube and verify the signal with the actual liquid, viscosity and suspended materials.
A machine may need to confirm the liquid state in a tube at a fixed process station.
Select sensitivity and Light-ON/Dark-ON operation for the installed tube, then connect the NPN output to a compatible control input.
