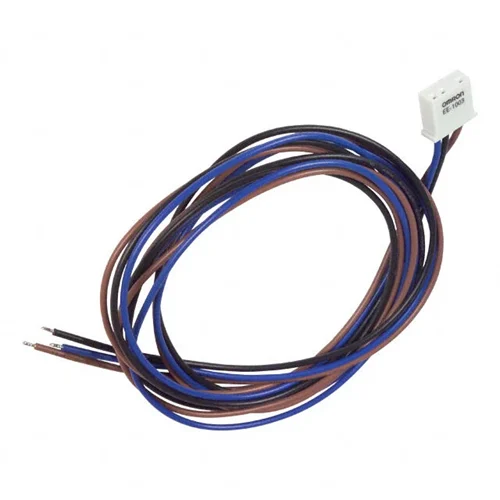

Omron EE-1003 is a photomicro sensor connector with a 1 m single-conductor cable for compatible EE-SPX and EE-SPY sensors.
The Omron EE-1003 is a connector-with-cable accessory for compatible EE-SPX301/401 and EE-SPY30[]/40[] photomicro sensors. This 1 m version uses a single-conductor, vinyl-insulated round cable with a 1.61 mm cable diameter and 0.33 mm² conductor cross-section. Omron lists EE-1003 as selling and standard-stock on its exact-model page, with status updated 2026-10-05.
A 1 m single-conductor connector cable for compatible Omron photomicro sensors.
| Parameter | Value |
|---|---|
| Product type | Photomicro sensor connector with cable |
| Manufacturer model | EE-1003; 1 m cable variant |
| Cable length | 1 m (drawing: 1,000 ± 20 mm) |
| Cable construction | 1.61 mm diameter, single-conductor, vinyl-insulated round cable |
| Conductor cross-section | 0.33 mm² |
| Applicable photomicro sensors | EE-SPX301/401 and EE-SPY30[]/40[] |
| Housing material | Nylon |
| Contact material | Phosphor bronze with solder plating |
| Contact resistance | 20 mΩ max. (at minute current of 1 kHz and 500 VDC) |
| Physical Weight (kg) | Not stated in the manufacturer data checked |
| Dimensions L x W x H (cm) | Refer to Omron's dimensional drawing; the overall assembly is a 1 m lead and no consolidated L × W × H value is stated. |
| Supply status | Active; Omron lists EE-1003 as selling and standard-stock, updated 2026-10-05. |
Engineering suggestions require suitability checks for your installation.
A service replacement may need a factory-fitted connector cable compatible with an installed EE-SPX or EE-SPY sensor.
Check the sensor model against Omron's compatible-model list and use the 1 m EE-1003 cable for the sensor-side connection.
A nearby terminal or interface may call for a short, pre-wired connection from the photomicro sensor.
Route the 1 m lead to the receiving circuit and verify its single-conductor wiring requirement against the sensor documentation.
