5 VDC incremental encoder with A, B, and Z phases. 100 kHz response frequency, 0.98 mN.m low friction torque, and RS-422A interface for high-speed CNC and robotics.

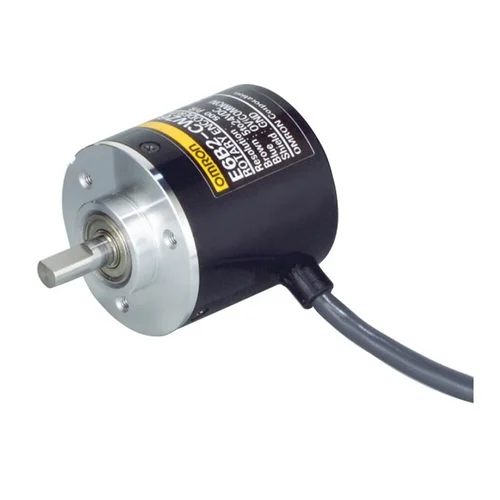

The Omron E6B2-CWZ1X 2000P/R 2M is a compact, general-purpose incremental rotary encoder featuring a 40mm external diameter housing and a durable 6mm solid stainless steel shaft. Designed for precise position and speed detection in industrial automation, this unit delivers a high resolution of 2000 pulses per revolution (PPR). It operates on a 5 VDC supply voltage and utilizes an RS-422A line driver output, providing excellent noise immunity for reliable long-distance signal transmission. Capable of handling rotational speeds up to 6000 rpm with a maximum response frequency of 100 kHz, it comes equipped with a pre-wired 2-meter cable. Protected by an IP50-rated ABS housing, it ensures highly reliable operation in ambient temperatures ranging from -10°C to +70°C.
| Parameter | Value |
|---|---|
| Resolution | 2000 P/R (Pulses per Revolution) |
| Power Supply Voltage | 5 VDC ±5% (ripple p-p 5% max.) |
| Current Consumption | 160 mA max. |
| Output Type | Line driver (RS-422A) |
| Output Phases | A, -A, B, -B, Z, -Z |
| Maximum Rotational Speed | 6000 rpm |
| Maximum Response Frequency | 100 kHz |
| Friction Torque | 0.98 mN.m max. |
| Shaft Diameter | 6 mm |
| External Diameter | 40 mm |
| Connection Method | Pre-wired cable (2 m length) |
| Degree of Protection | IP50 |
| Ambient Operating Temperature | -10 to +70°C |
Utilized for pulse feedback on VFD-driven automated packaging conveyors to maintain precise synchronization across multiple transport zones.
Eliminates product slippage and positioning errors in electrically noisy environments by providing highly accurate speed mapping using noise-immune RS-422A line driver signals.
Integrated onto X-Y axis servo motors inside CNC milling machines to provide high-resolution rotational feedback for tool path control.
Ensures minute linear displacement tracking at operational speeds up to 6000 rpm, reliably translating rapid motor shaft rotations into exact physical coordinate positioning.
Mounted at the articulation joints of industrial pick-and-place robotic arms to measure exact rotational angles for complex kinematic calculations.
Provides accurate, low-drag rotational tracking without burdening the joint motors due to its low 0.98 mN.m friction torque, while transmitting clean signals via the 2-meter cable.
