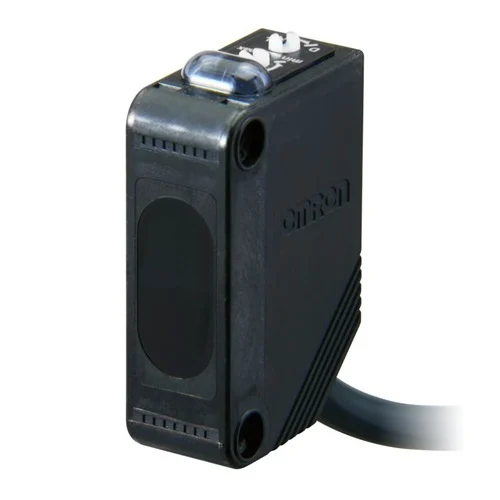

Omron E3ZG-D81-S 2M diffuse photoelectric sensor has a 5–100 mm wide-view range, PNP output, 2 m cable, 1 ms response and IP65 protection.
The Omron E3ZG-D81-S 2M is a compact diffuse-reflective photoelectric sensor with a wide-view 5–100 mm sensing range for a 100 × 100 mm white-paper target. It uses an 870 nm infrared LED, PNP open-collector output and a pre-wired 2 m cable; the output is selectable between Light-ON and Dark-ON. The unit operates from 12–24 VDC, responds within 1 ms and has an IEC IP65 rating. Omron’s datasheet confirms this exact model’s specifications, while its current supply status is unconfirmed.
A compact PNP diffuse photoelectric sensor with a 5–100 mm wide-view range, 2 m cable and IP65 rating.
| Parameter | Value |
|---|---|
| Sensor type | Compact photoelectric sensor with built-in amplifier; diffuse-reflective |
| Sensing distance | 5 to 100 mm wide-view; specified with 100 × 100 mm white paper |
| Light source | Infrared LED, 870 nm |
| Output | PNP open collector; Light-ON/Dark-ON selectable; 100 mA max. load at up to 26.4 VDC |
| Response time | 1 ms maximum operate or reset |
| Power supply | 12–24 VDC ±10%; ripple (peak-to-peak) 10% maximum |
| Current consumption | 30 mA maximum |
| Sensitivity adjustment | One-turn adjuster |
| Operating temperature | −25 to 55 °C, no icing or condensation |
| Storage temperature | −40 to 70 °C, no icing or condensation |
| Relative humidity | Operating: 35–85%; storage: 35–95%, non-condensing |
| Connection | Pre-wired 2 m cable; brown +V, blue 0 V, black output |
| IP rating | IEC IP65 |
| Housing material | PBT case; modified-polyarylate lens |
| Physical Weight (kg) | Approx. 0.065 (packed weight) |
| Dimensions L x W x H (cm) | 3.1 x 2.0 x 1.08 (sensor body; cable excluded) |
Engineering suggestions require suitability checks for your installation.
A conveyor station may need a compact non-contact signal to confirm that a package or component has reached a sensing point.
The wide-view diffuse sensor can detect a suitable target across 5–100 mm; validate the target size, color, surface reflectance and mounting distance during commissioning.
A machine may require a discrete indication that a component is present before an actuator or process step proceeds.
Selectable Light-ON/Dark-ON logic and a manual sensitivity adjuster allow setup for the application; check ambient light and target contrast at the installed position.
