Omron E3Z-G62 2M is an NPN grooved photoelectric sensor with 25 mm groove sensing distance range, 12–24 VDC ±10%, 1 ms max. response and IP64 protection.

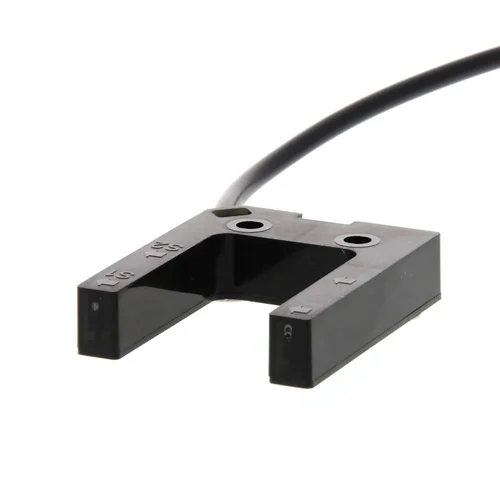

The Omron E3Z-G62 2M is a grooved through-beam photoelectric sensor with 2 optical axis/axes and NPN output. It detects opaque objects at the 25 mm groove, operates from 12–24 VDC and responds within 1 ms. The ABS housing is rated IP64; current supply status is recorded as Unknown.
A NPN grooved photoelectric with a rated sensing range of 25 mm groove sensing distance.
| Parameter | Value |
|---|---|
| Sensing method | Grooved through-beam photoelectric |
| Number of optical axes | 2 |
| Sensing distance | 25 mm between the groove arms |
| Minimum standard object | Opaque object, 1.5 mm diameter minimum |
| Light source | Infrared LED, 940 nm |
| Power supply | 12–24 VDC ±10%; 10% p-p ripple maximum |
| Current consumption | 40 mA max. |
| Output | NPN open collector; 100 mA max. at 26.4 VDC max.; 1 V max. residual; Light-ON/Dark-ON selectable |
| Response time | 1 ms max. operate or reset |
| Ambient temperature | Operating −25 to +55 °C; storage −40 to +70 °C |
| Ambient humidity | Operating 35–85% RH; storage 35–95% RH |
| Enclosure rating | IP64 |
| Housing material | ABS (acrylonitrile butadiene styrene) |
| Connection | 2 m pre-wired cable |
| Physical Weight (kg) | Approx. 0.065 kg packed |
| Dimensions L x W x H (cm) | See Omron dimension drawing; dimensions not transcribed numerically |
| Supply status | Unknown; current manufacturer supply state not established |
Engineering suggestions require suitability checks for your installation.
A feeder or assembly stage may require a compact optical gate to confirm an opaque part passing through a narrow path.
Position the part through the 25 mm groove and connect the NPN output to a compatible controller input; verify the 1.5 mm minimum opaque target.
A two-axis version can monitor two optical paths in one compact sensor body.
Use the two outputs as separate sequence inputs and confirm axis-to-wire mapping from Omron's connection diagram before wiring.
